Backyard Firepit for BBQ?

[clumberjack]

Built a backyard fire-pit which I'm now trying converting to Firepit/BBQ. Any one know any reputable places in south Florida which fabricate BBQ grills (48"x33")? Attached are pictures of the contraption I plan on putting together.



[4ever3]

Dave (dwfisk) might, I bet he'll be by after while.

It'll be a sweet pit!



[clumberjack]

Thanks,



[KevinJ]

Here is Dave's build thread, if he doesn't see this thread you can PM him http://www.bbq-brethren.com/forum/showthread.php?t=161033



[clumberjack]

Thanks fellas! I sent Dave a PM.



[dwfisk]

Here is Dave's build thread, if he doesn't see this thread you can PM him http://www.bbq-brethren.com/forum/showthread.php?t=161033

Thanks fellas! I sent Dave a PM.

Thanks guys, responded to your PM. Here are some more ideas to ponder.

http://www.bbq-brethren.com/forum/showthread.php?t=177927

One more

http://www.bbq-brethren.com/forum/showthread.php?t=202184



[clumberjack]

Thanks Dave,

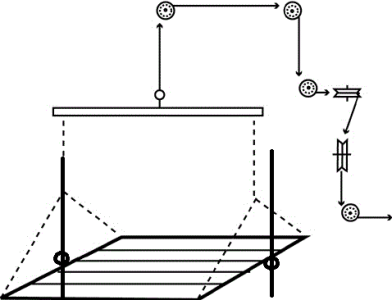

That grill/grate - http://postimg.org/image/4deh93hs1/

will work, but will need some rings welded. Four rings on the corners, so the engine load leveler can attach to, and rings on the sides, so a vertical pipe can be ran thru on both sides, to stabilize the grill grate as it is hoisted.

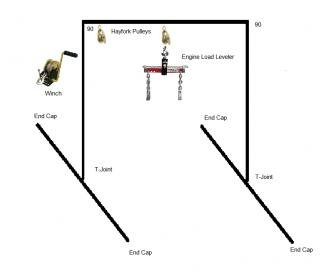

Frame/ Contraption - http://postimg.org/image/yam70kdz5/
Grill/Grate - http://postimg.org/image/o5euqfa2p/

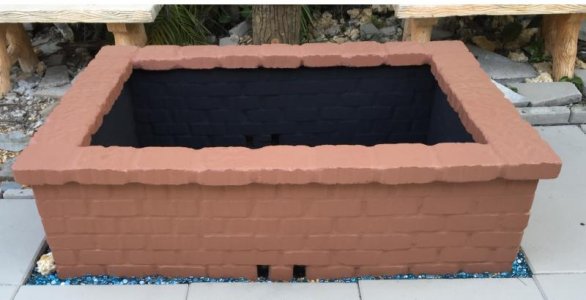

Here is the firepit:
http://postimg.org/image/6bkrysibl/
http://postimg.org/image/rz1014kw1/



[dwfisk]

Thanks Dave,

That grill/grate - http://postimg.org/image/4deh93hs1/

will work, but will need some rings welded. Four rings on the corners, so the engine load leveler can attach to, and one rings on the sides, so a vertical pipe can be ran thru it, to stabilize the grill grate as it is hoisted.

Frame/ Contraption - http://postimg.org/image/yam70kdz5/
Grill/Grate - http://postimg.org/image/o5euqfa2p/

I'm pretty sure any small welding/fab shop near you could work off that picture and your dimensions. I would suggest making the frame out of 1 inch angle, the cross supports are 3/4 inch square tube (put them every foot to support the expanded metal) and the expanded metal grating is 3/4 inch by 9 gauge flattened. You can find rings in a variety of sizes at any good hardware or Tractor Supply. Good luck.



[clumberjack]

Thanks,



[Smoke Dawg]

I cook on my fire pit often but I just throw a pipe across and a large grate on it. Someday I may add a Hi Tech adjustable system.

I'll save these links for when that happens - Thanks
