Default How to make a baffle/convection plate?

Hey all,
I've purchased an OK Joe Highland and am planning to mod it before embarking on learning offset stick-burning. I'm wondering if anyone here has made their own baffle and convection plate (like the Horizon or bbqsmokermods.com ones), and how you went about it?

How thick does the metal need to be? I'm wondering if it can be accomplished without welding or any heavy tools. I looked around but wasn't able to find any DIY guides on the subject.

Thanks!
keodark is offline   Reply With Quote


Thanks from:--->


Old 12-18-2015, 11:17 PM   #2
SmittyJonz
somebody shut me the fark up.

SmittyJonz's Avatar

Join Date: 07-17-13
Location: Burleson Tx
Default

1/8 - 3/16" plate and a drill and step bit, oil for bit. You can buy a $6 blade at Home Depot for circular saw to cut plate.
__________________
NO Such Thing as Over Smoked - just Over Dirty Smoked.............
SmittyJonz is online now   Reply With Quote


Thanks from:--->
Old 12-18-2015, 11:37 PM   #3
robert-r
is One Chatty Farker

Join Date: 03-29-15
Location: AntHome 92025
Default

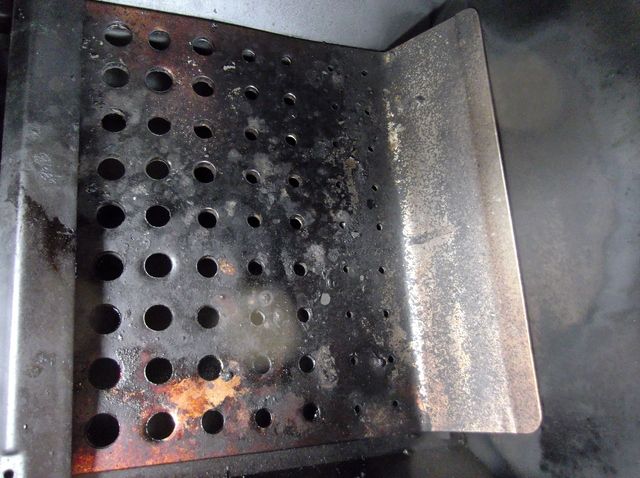

This is what I did for my OK Joe Highland:





Works well. Temps are very even from end to end of the cook chamber. It's all 3/16 plate. Used a press brake to bend the plate next to the firebox. Drilled a lot of holes!

Probably version 3. It took a lot of experimenting to arrive at this configuration. I started out looking at the plate that Horizon sells for the OK Joe & doing a copy of that. That didn't work at all. Had 90* difference across the cook chamber.
robert-r is offline   Reply With Quote


1 members found this post helpful.
Thanks from:--->
Old 12-18-2015, 11:45 PM   #4
BBQ Freak
Babbling Farker


BBQ Freak's Avatar

Join Date: 08-11-13
Location: Rayville , Missouri
Default

I bought my 1/4" plates for my smokers from a metal shop for $32 but you could go thinner for less money . mine are cut from 6" wide plates and what I did was make some test pieces out of cardboard to get the right width and they just set in there . I space the last two plates and it will even out the temps across the grate and is the best mod you can do on a OKJ .

here is a pic I did recently on a different smoker
__________________
Rec Tec 590 Pellet Smoker

Shirley Fabrication 24 X 36 Golf Cart Model

Shirley Fabrication 24 X 36 Grill

Shirley Fabrication Firepit / Grill

Last edited by BBQ Freak; 07-14-2018 at 03:32 PM..
BBQ Freak is offline   Reply With Quote


Thanks from:--->
Old 12-18-2015, 11:46 PM   #5
Smoke Dawg
Quintessential Chatty Farker


Smoke Dawg's Avatar

Join Date: 06-22-13
Location: Montana
Name/Nickname : IMF
Default

I modeled mine off of a Yoder 1/8"

Attachment 119959

Attachment 119960

Attachment 119961
__________________
A bunch of stuff to build a Fire so I can hang out and Smoke, Grill, or cook with!
More stuff for Cutting, Grinding, Stuffing, Canning and so on!
Double down Zero Club Champion
IMBAS Certified Moink Baller

Last edited by Smoke Dawg; 03-20-2016 at 01:58 PM..
Smoke Dawg is offline   Reply With Quote


Old 12-19-2015, 12:42 AM   #6
Bludawg
somebody shut me the fark up.

Bludawg's Avatar

Join Date: 07-04-09
Location: Jonesboro,Tx
Default

$10 air bake cookie sheet from walmart all you need is a drill and a unibit

__________________
I'm a Proxy Vegetarian> Cows eat grass & I eat cows.
Bludawg is offline   Reply With Quote


Thanks from: --->
Old 12-19-2015, 06:31 AM   #7
Doog
is One Chatty Farker

Doog's Avatar

Join Date: 06-08-14
Location: Pa.
Default

My convection plate I made out of 1/4 steel for under $20.00. But I welded it.
It shouldn't be to had to come up with something .
Enjoy your new smoker.
__________________
Every cook is a learning experience....Big offset, Kamado, Blackstone
Doog is offline   Reply With Quote


Old 12-20-2015, 12:10 PM   #8
keodark
Knows what a fatty is.

Join Date: 12-11-15
Location: San Jose, CA
Default

Quote:
Originally Posted by Bludawg View Post
$10 air bake cookie sheet from walmart all you need is a drill and a unibit
Thanks for this idea! Do you have any pictures that show the whole chamber of the cooker with that installed? Also, what width pan is that?
keodark is offline   Reply With Quote


Old 08-15-2016, 04:27 PM   #9
SmittyJonz
somebody shut me the fark up.

SmittyJonz's Avatar

Join Date: 07-17-13
Location: Burleson Tx
Default

Bump for Newbs.......
__________________
NO Such Thing as Over Smoked - just Over Dirty Smoked.............
SmittyJonz is online now   Reply With Quote


Old 08-15-2016, 07:16 PM   #10
tonyjohnson619
is one Smokin' Farker

tonyjohnson619's Avatar

Join Date: 07-29-16
Location: ramona ca
Default

I have the bigger ok Joe and I changed exhaust and added a Lil baffle and works awesome now.
Attached Images
File Type: jpg 20160730_230052.jpg (41.4 KB, 380 views)
File Type: jpg 20160730_230006.jpg (40.6 KB, 375 views)
tonyjohnson619 is offline   Reply With Quote


Old 08-15-2016, 07:26 PM   #11
jeffturnerjr
is One Chatty Farker

jeffturnerjr's Avatar

Join Date: 08-20-13
Location: Odessa, TX
Default

Too bad there's not a mod appreciation thread!
__________________
Husband, Father & Pastor. Offset Cooker made by Muscrat, Weber Kettle, El Cheapo Brinkman
jeffturnerjr is offline   Reply With Quote


Old 08-15-2016, 08:14 PM   #12
TedW
is Blowin Smoke!

Join Date: 05-12-09
Location: Northern Michigan by the Pinkie
Default

What a great looking little smoker for cheap!!!! So how well do these work after mods?
TedW is offline   Reply With Quote


Old 08-15-2016, 10:29 PM   #13
tonyjohnson619
is one Smokin' Farker

tonyjohnson619's Avatar

Join Date: 07-29-16
Location: ramona ca
Default

Mine runs pretty good for a 400 dollar smoker.... I am just using it tell I find a tank for a custom one.
tonyjohnson619 is offline   Reply With Quote


Thanks from:--->
Old 08-15-2016, 11:55 PM   #14
robert-r
is One Chatty Farker

Join Date: 03-29-15
Location: AntHome 92025
Default

Quote:
Originally Posted by TedW View Post
What a great looking little smoker for cheap!!!! So how well do these work after mods?
Works fine. No plans to upgrade to a "quality" unit in the near future (Weekend Warrior here). If it dies in the next 5 years... might just go get another one.
__________________
18.5/14.5 WSMs, 26.5 XL, 22.5 Performer, JJ & SJ Kettles, OKJ Highland, Genesis 330
robert-r is offline   Reply With Quote


Thanks from:--->
Old 08-15-2016, 11:56 PM   #15
McSpazatron
is one Smokin' Farker

Join Date: 11-01-15
Location: Milwaukee, WI
Default

Well, since were bumping for newbs, I figured I'd throw out another option for folks trying to even out temps in offsets. It really might be worth trying out if you are into experimenting a bit. The idea didn't come from me, it came about by reading up on how Jambo's were designed. I've cooked 5 times with this mod (each with full loads of multiple briskets or other meats), and am still quite happy with it. Here is a link to the original thread: http://www.bbq-brethren.com/forum/sh...d.php?t=232977
This idea should work in principal on other offsets.

Here was my thinking: Most offset direct flow smokers tend to give bottom heat to the meat once a draft is established, at least mine does. I had regular baffle plates on my Peoria, and it seemed to move the hot spots around, but not so much get rid of them. While hot spots can be helpful, they got in the way when cooking several briskets at once. I experimented for a while with different plate positions, struggled with some burnt bottoms, and dealt with fat smoke from grease hitting the hot baffle plates. I wasn't looking forward to experimenting with drilling multiple holes in 1/4 inch plate (like the horizon plates have), so that led to trying the current plate I'm using.

I cut out a plate out of thin sheet steel (12 bucks for a 12x24 sheet) that basically forces the hot air straight up to the top of the cook chamber as soon as it leaves the firebox. Once the heat fills the top of the smoker, then the hot air all drops down over the meat very evenly left to right, as it finds the exhaust stack.

This method will concentrate the hot spot very near the firebox, so you still lose a little bit of cooking area. However, what you lose is really not that much (Maybe 6 to 8 inches of my total cooking area, which is 48 inches long. The cooking area that is left though, has been very even, and all top heat which does not scorch when you raise the temps. I also don't get any grease smoke from stuff dripping down on hot steel.

Here are a couple of pics, the rest are in the linked thread. Hopefully this could come in useful for someone.

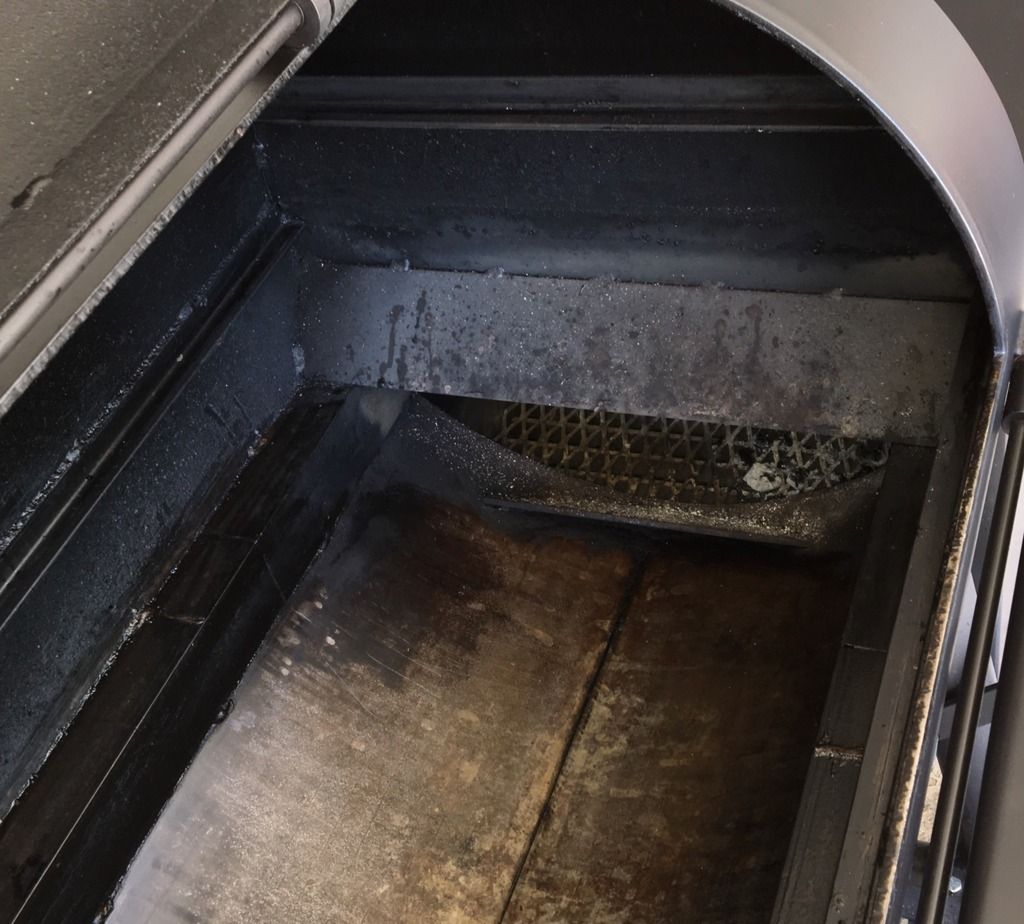

Looking into cook chamber towards the firebox, No plates:

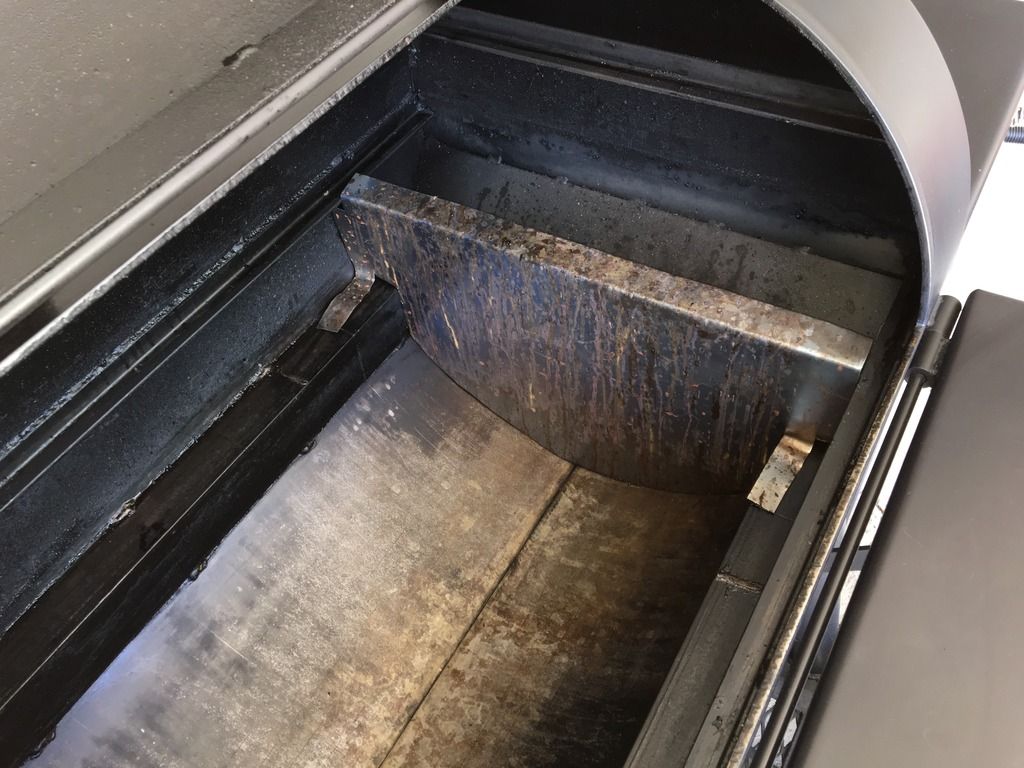

Same view, but with the new 22gauge sheet, which sits about 4 inches away from the firebox opening:

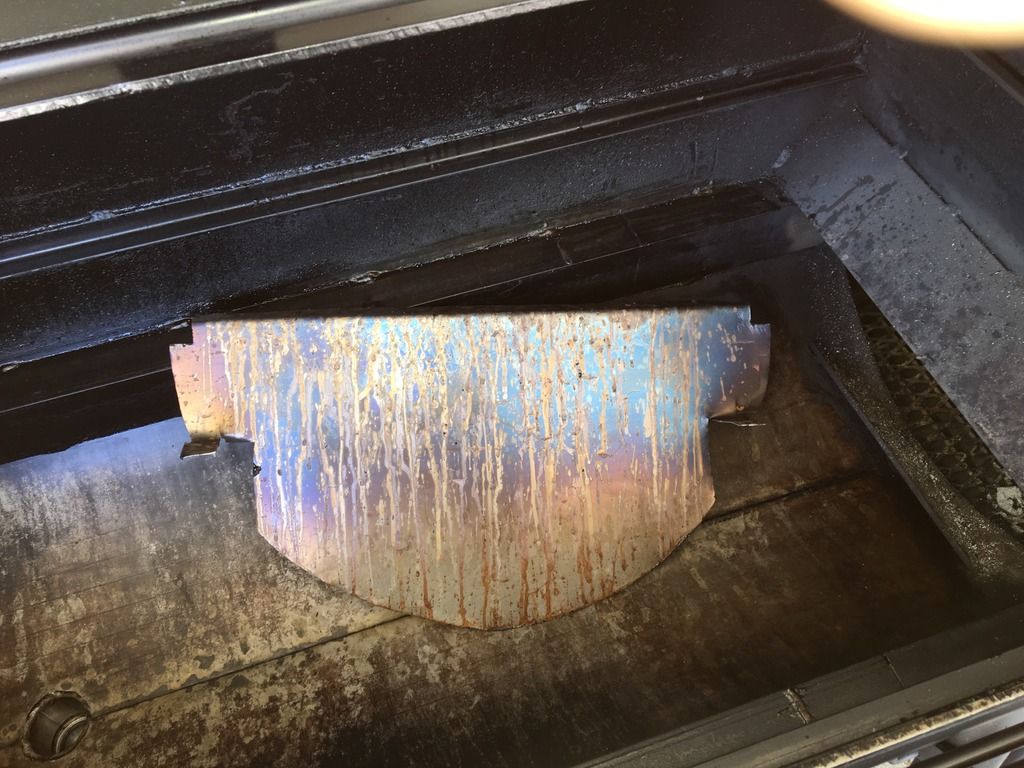

Here is the sheet by itself. It's easily removable for cleaning the bottom of the cook chamber, because it just rests on the rails that previously held the 1/4 baffle plates that it had before. The little tabs on the on the sides of the sheet keep it from falling over.
