Default Rebuild Log: $25 Weber Performer CL Find (Lots of pics)

I hope this rebuild log helps someone with their rebuild or at least gives them an idea what to expect with a used Weber from Craigslist.

I had been searching on Craigslist for a while for a Weber Kettle of some sort. I actually gave up and bought a OTG from HD. When I got home, I sat down and thought I'd look on CL one last time. I stumbled across an ad for a "Weber Grill - $25". I quickly emailed them and asked for pictures.

Photo from the CL ad:


Needless to say, I had the grill at my house within an hour. I had just bought myself a 2009 Weber Performer with Touch-N-Go Gas Assist! Ok, so the handle on the lid was pushed in, it had no front casters and no bottom rack. But it was cheap.

Time to evaluate what I actually bought.

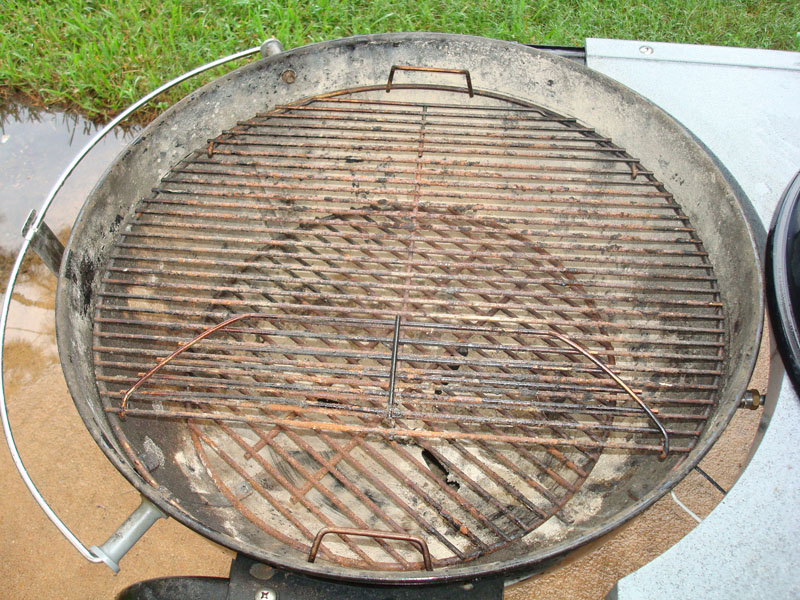

The cooking grate has to go, but the charcoal grate is fine.

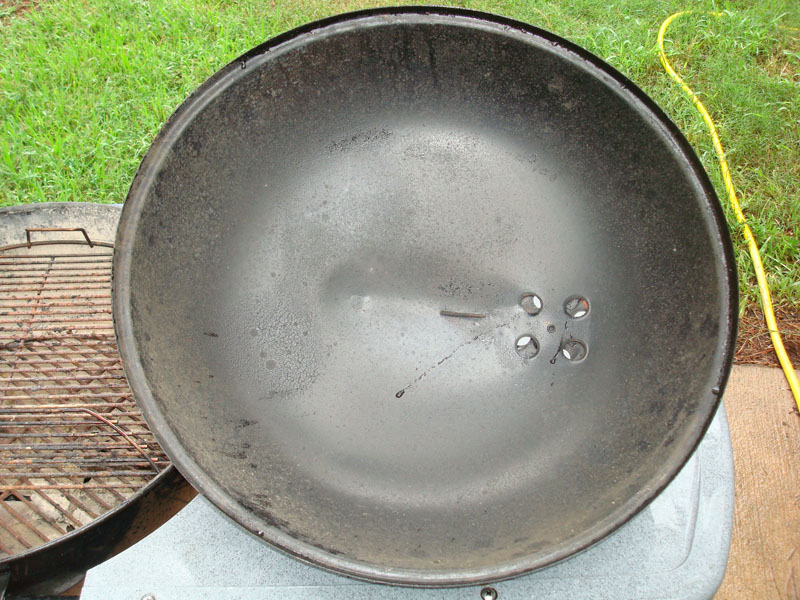

The center of the lid is pushed in.

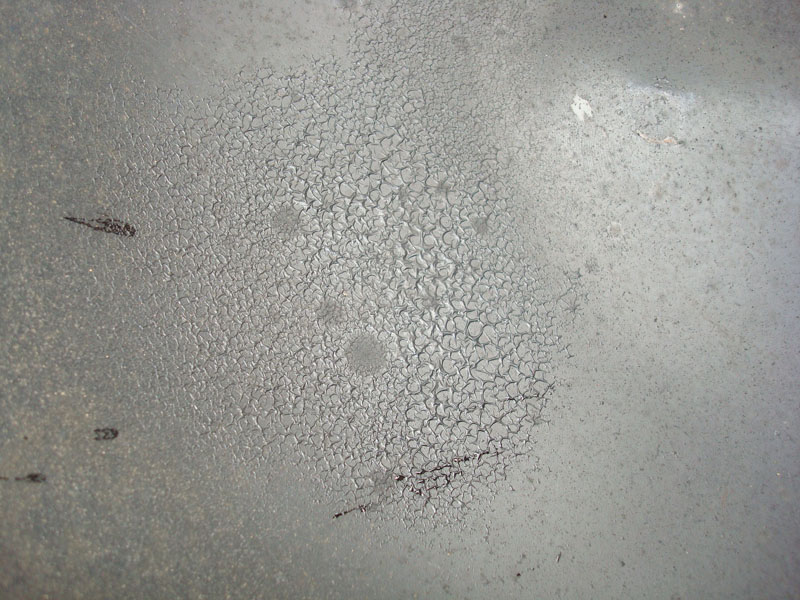

What looks like peeling paint underneath the lid, isn't. It cleans off.

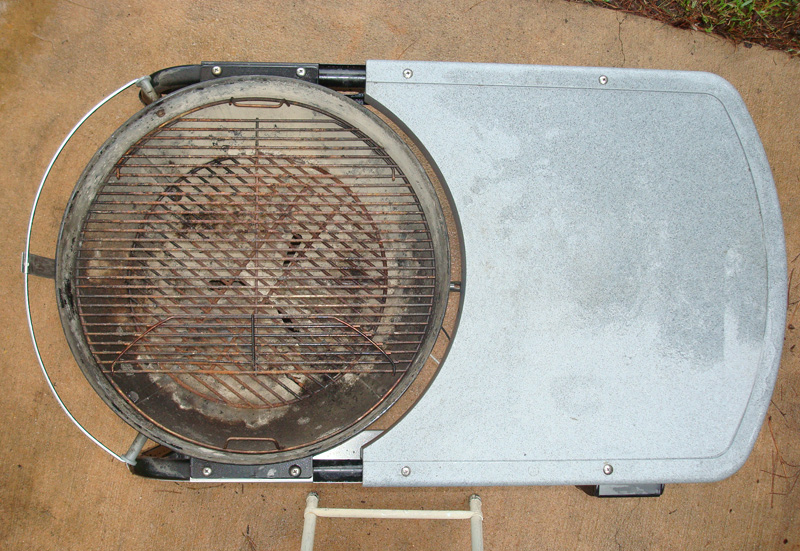

Top view of the Performer.

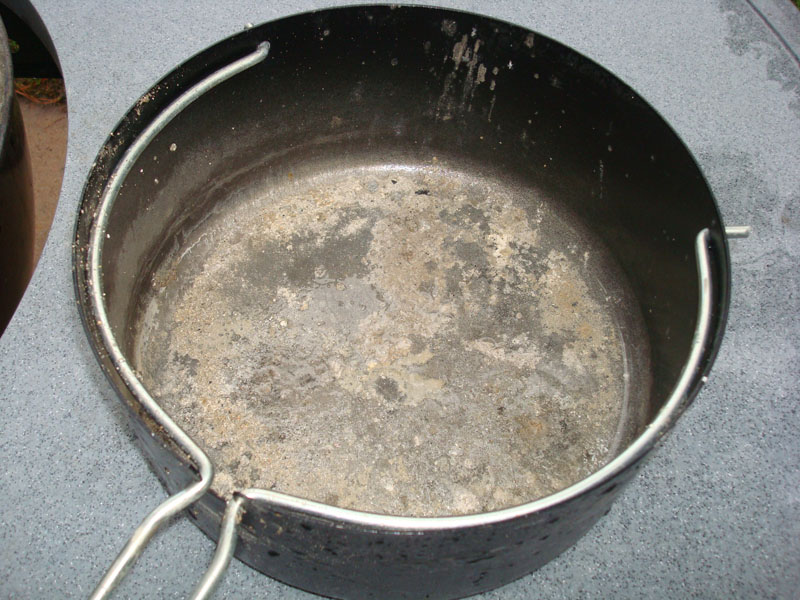

The ash catcher had rock hard ash that was stuck to the metal.


The "Gas Assist" burner was actually in good shape.
FlashJim is offline   Reply With Quote


Unread 07-22-2012, 01:54 PM   #2
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

Let's clean this sucker up and rebuild it!

I started the rebuild by removing the table.


With the table out of the way, you can access the burner assembly.

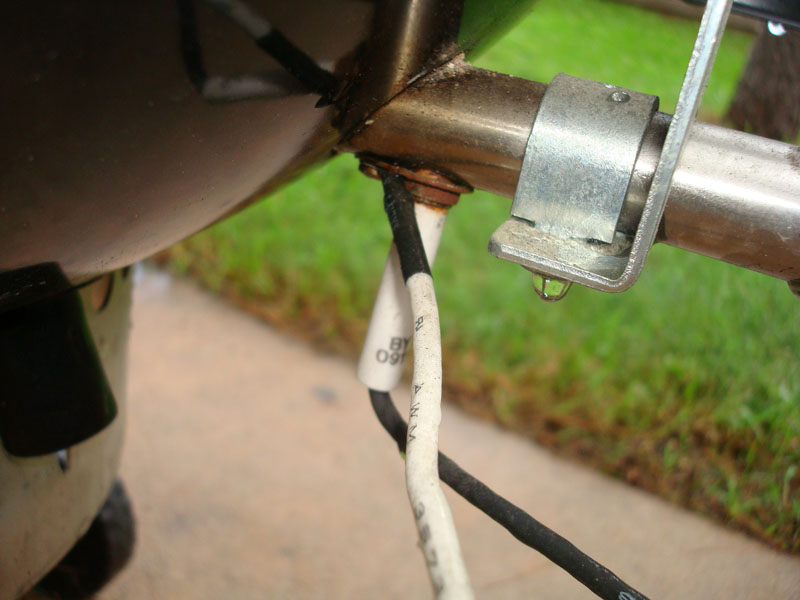

This shows how the wires connect to the burner tube.

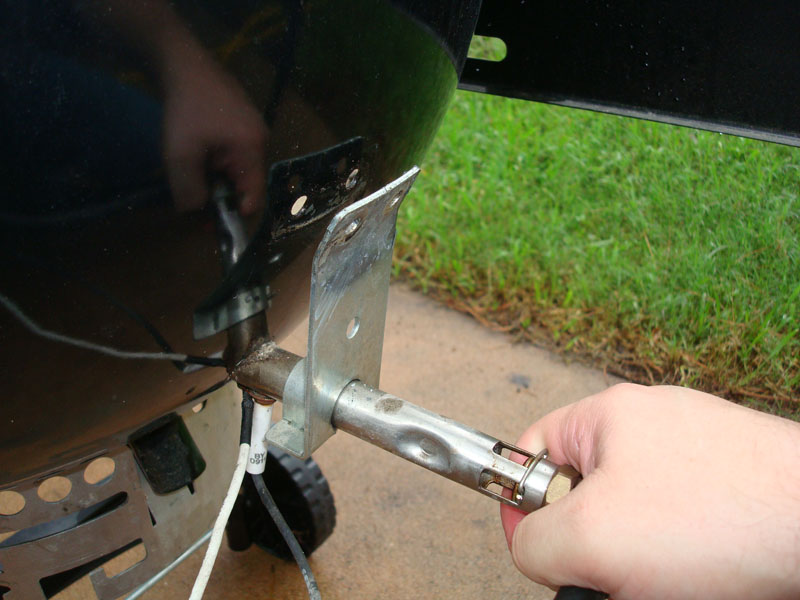

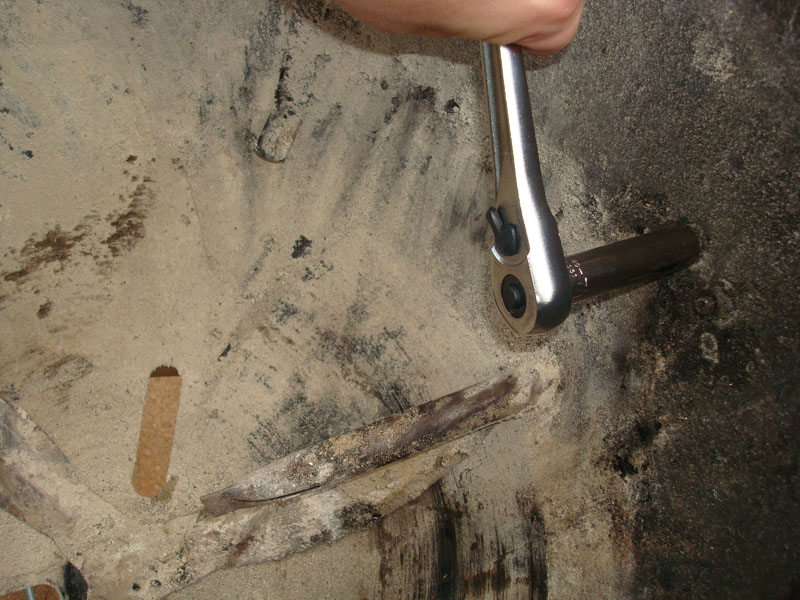

I used a 1/2" socket and a screwdriver to remove the burner assembly from the kettle.


With the two bolts removed, the burner assembly slides right out.

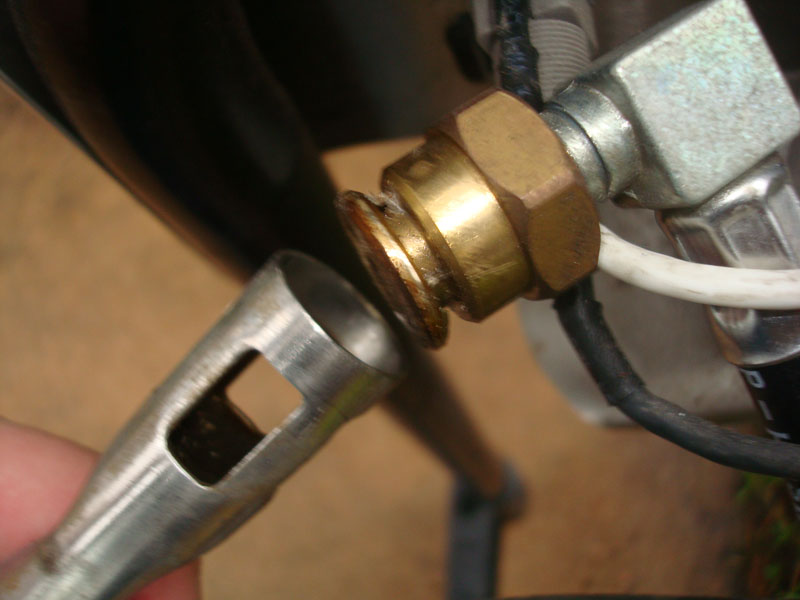

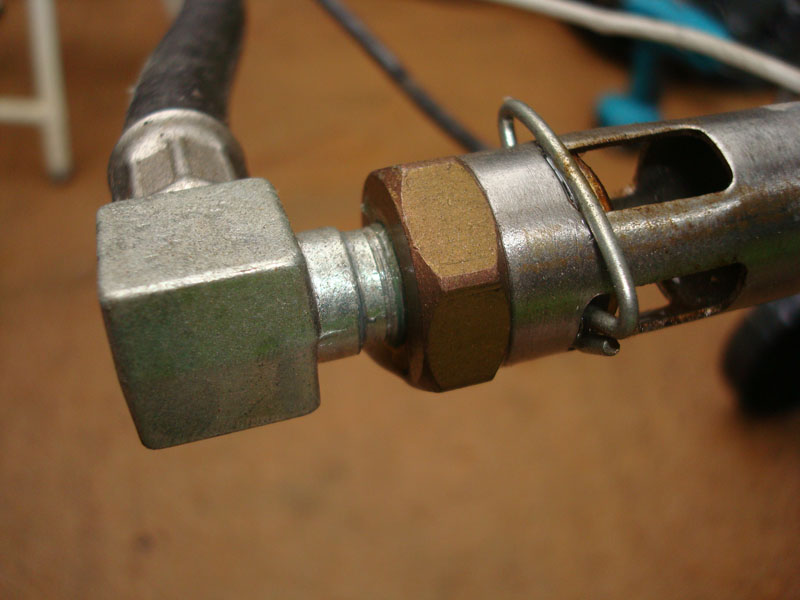

Close up view of the hose/burner connection that's held together with a retainer clip.

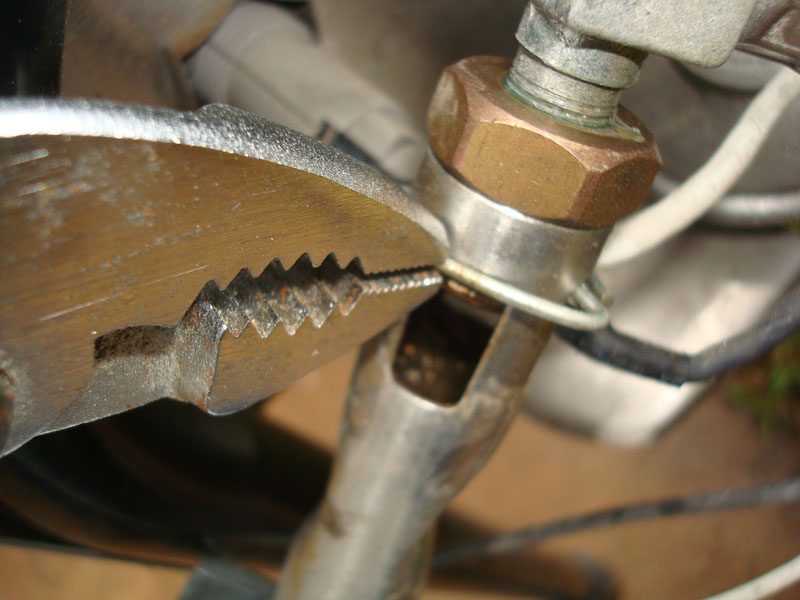

Use pliers to remove the clip and the hose can be pulled out of the end of the burner tube.

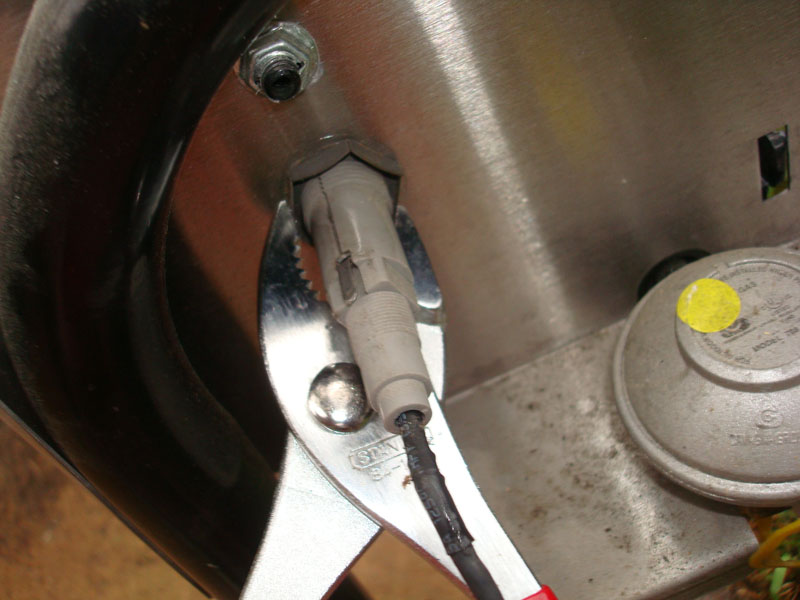

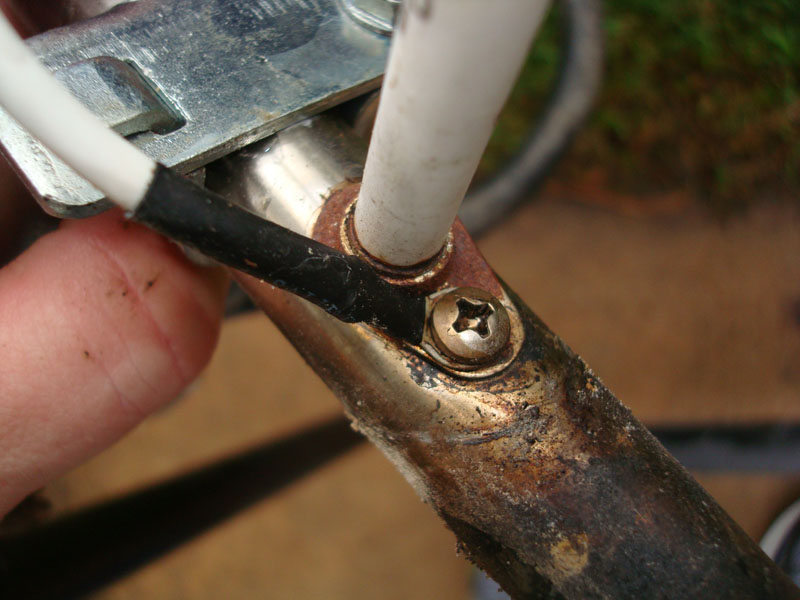

Next I unscrewed the igniter from the burner tube.

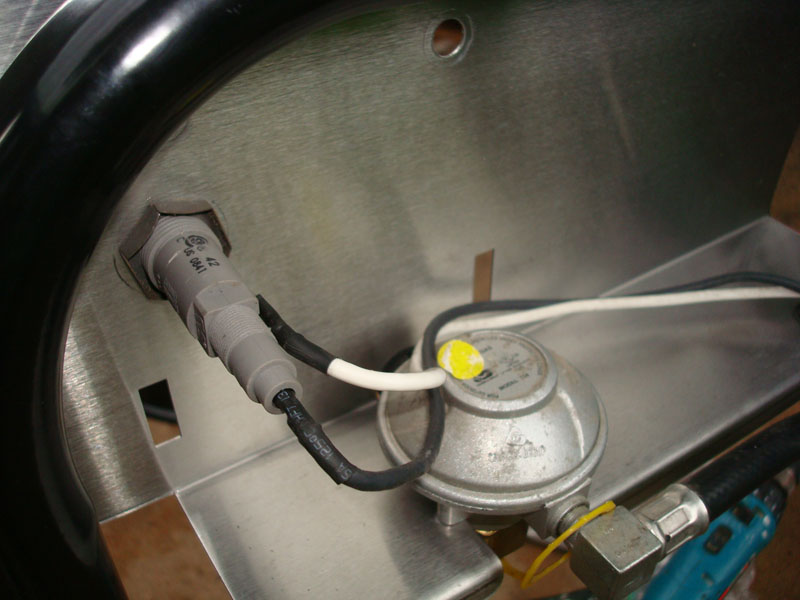

Now it's time to remove the spark generator and regulator from the front panel.


After unplugging the wires, remove the nut to remove the spark generator.

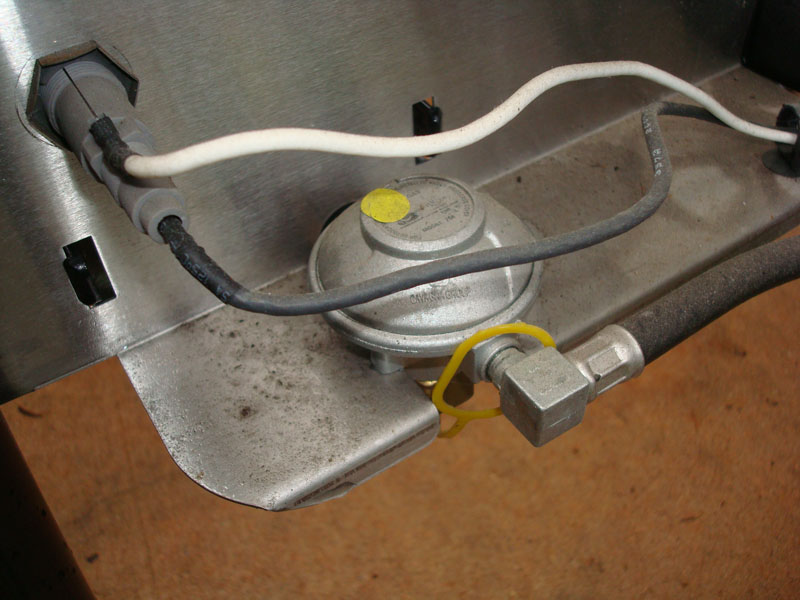

You'll need a 1/4" socket to remove the regulator. I left the hose connected so I didn't have to
reseal the connection.




The knob slips through the front panel, so there's no need to remove it.
FlashJim is offline   Reply With Quote


Unread 07-22-2012, 01:56 PM   #3
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

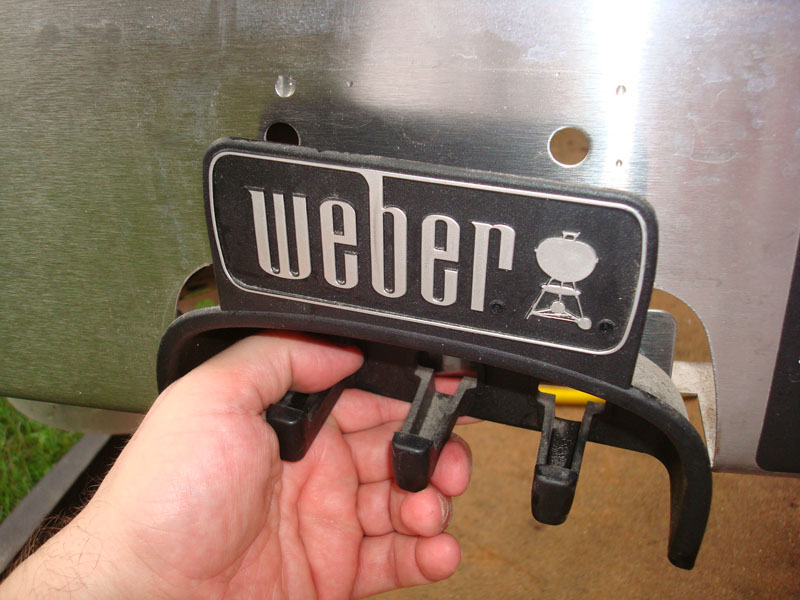

The next thing to remove is the tool holder. It's held on by four 1/2" nuts.



The control panel door is held on by two 1/2" nuts and two tabs.

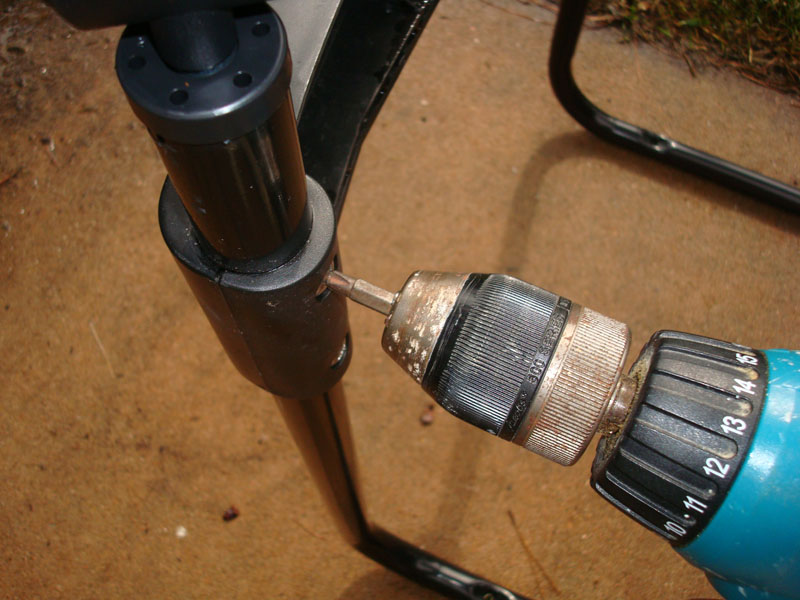

Four bolts are removed to allow the kettle bowl to be lifted out.



Lift the front and rear panels straight up to remove them.

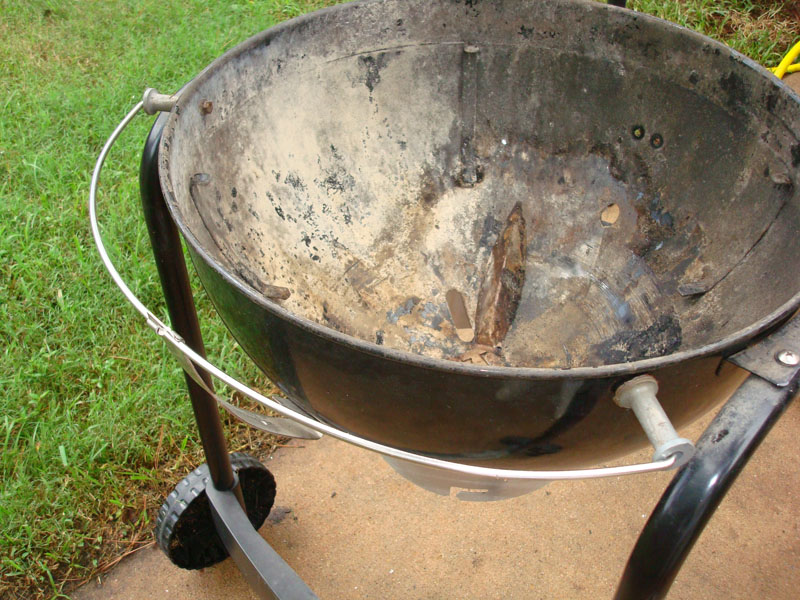

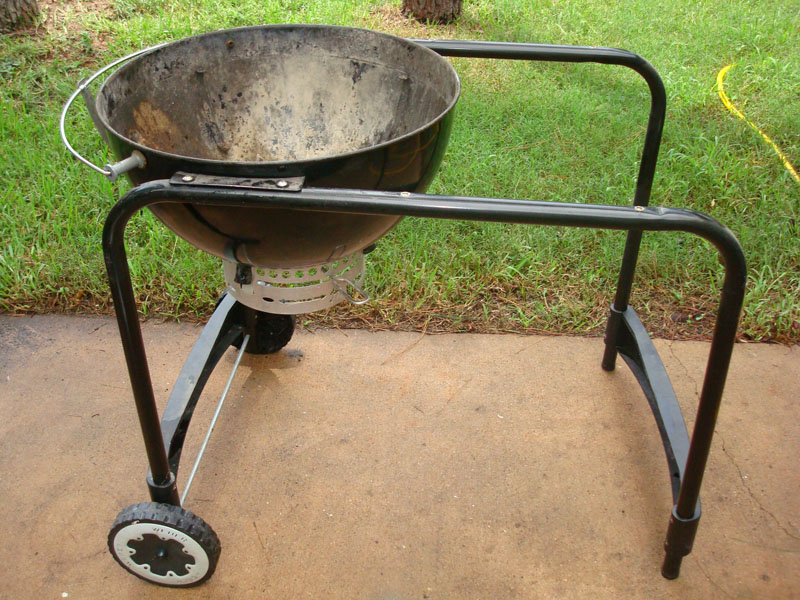

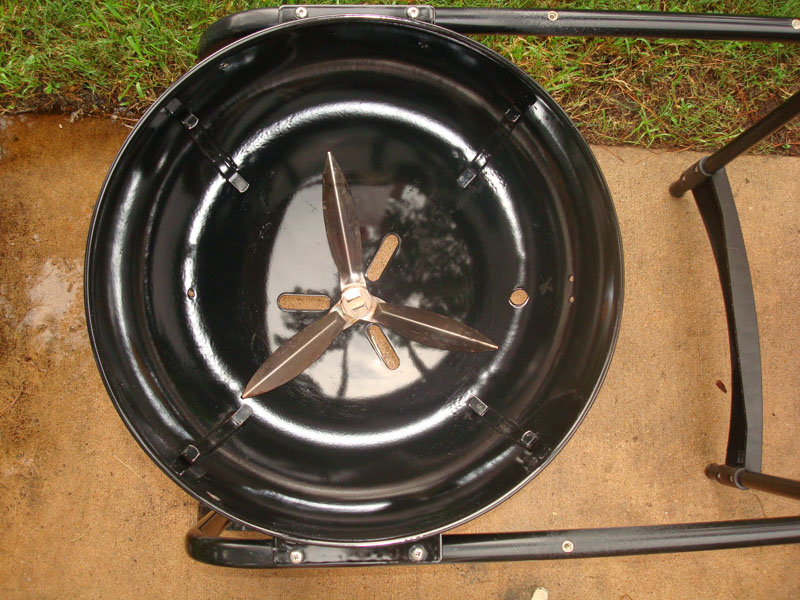

I dropped the kettle bowl back into the frame to make it easier to clean.


A 1/2" socket is used to remove three nuts that fasten the lid holder to the bowl.



The ash catcher ring is removed by releasing the three tabs behind each leg stub on the kettle bowl.
FlashJim is offline   Reply With Quote


Unread 07-22-2012, 02:00 PM   #4
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

Now that most of the grill is dismantled, it's time to start cleaning and repairing.

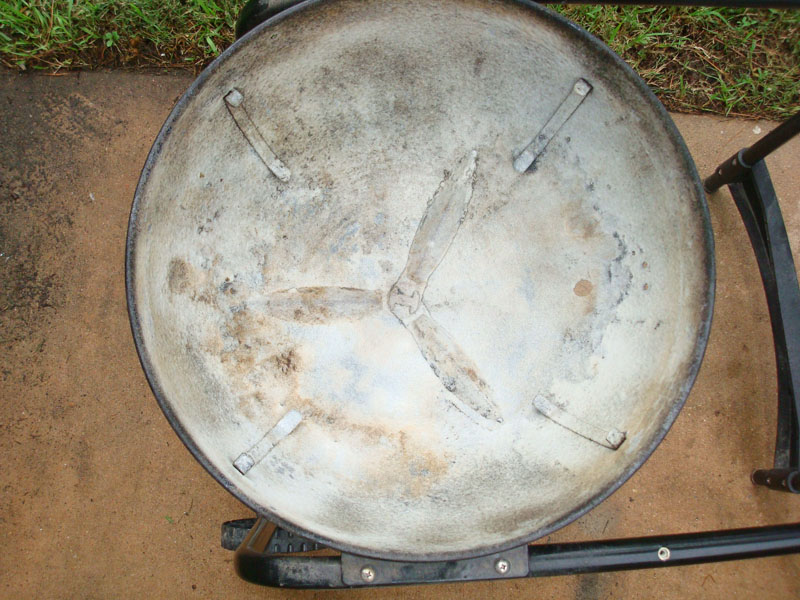

Standard off the shelf Easy-Off was used to clean the bowl and lid. The after photo is after letting the Easy-Off do it's work for 20 minutes.



I used a citrus based cleaner on the entire grill after I rinsed the Easy-Off off. Now that it's all shiny and clean, it's time to fix everything that's broken and reassemble. The correct casters for the 2009 Performer is Weber part # 68238. The inserts are round.

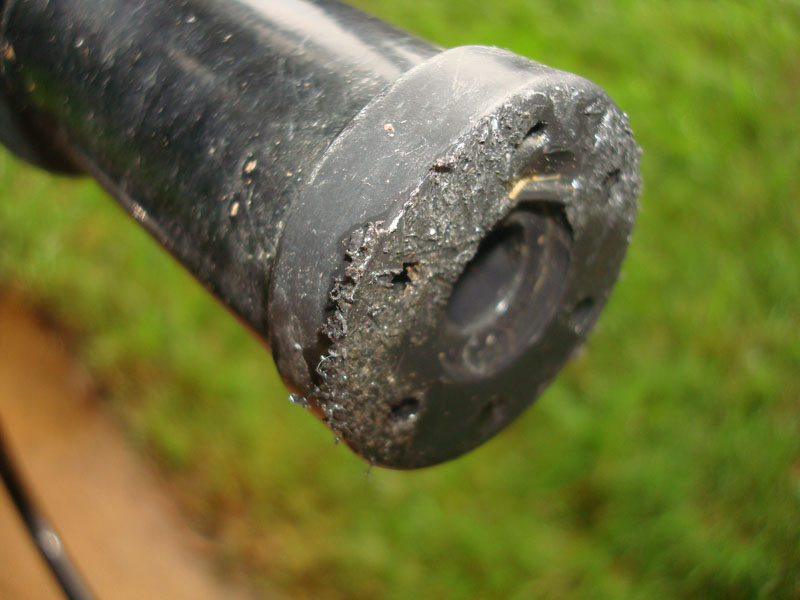

The original insert had seen better days. It looks like the grill lost it's casters a long time ago.

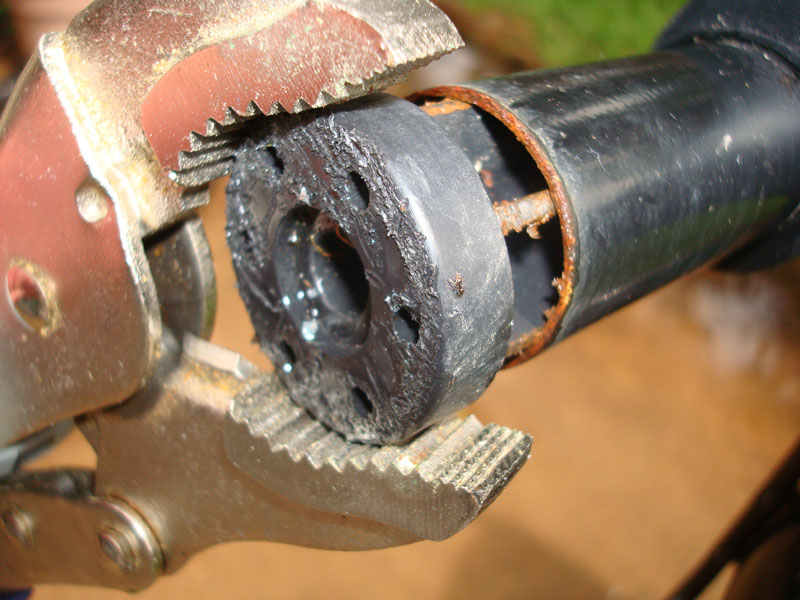

To replace the insert, use pliers to twist and pull it out of the leg. Not much force is needed. Chances are it can be done by hand.

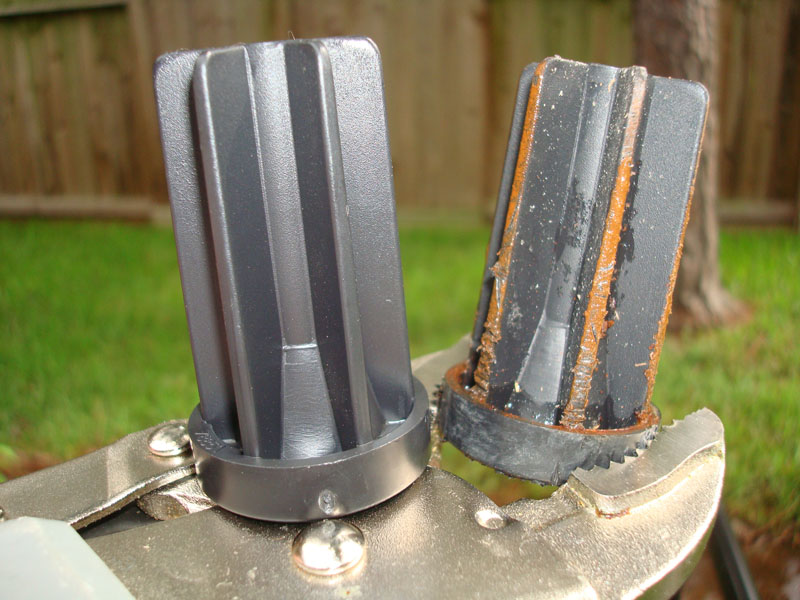

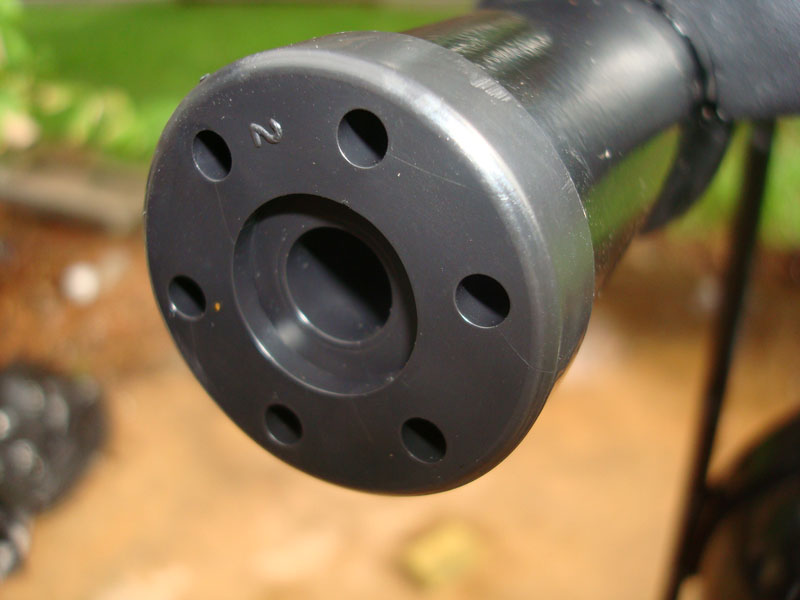

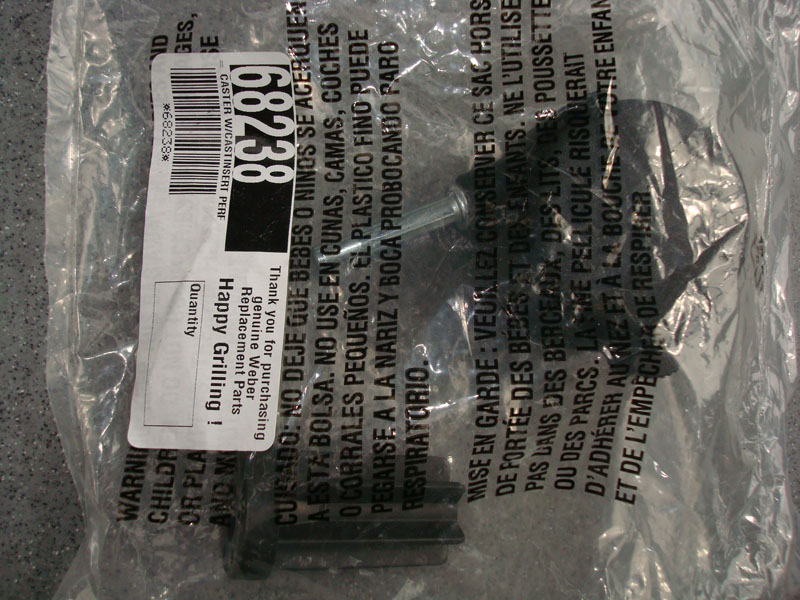

This is definitely the correct replacement part. The new insert just pops right in.

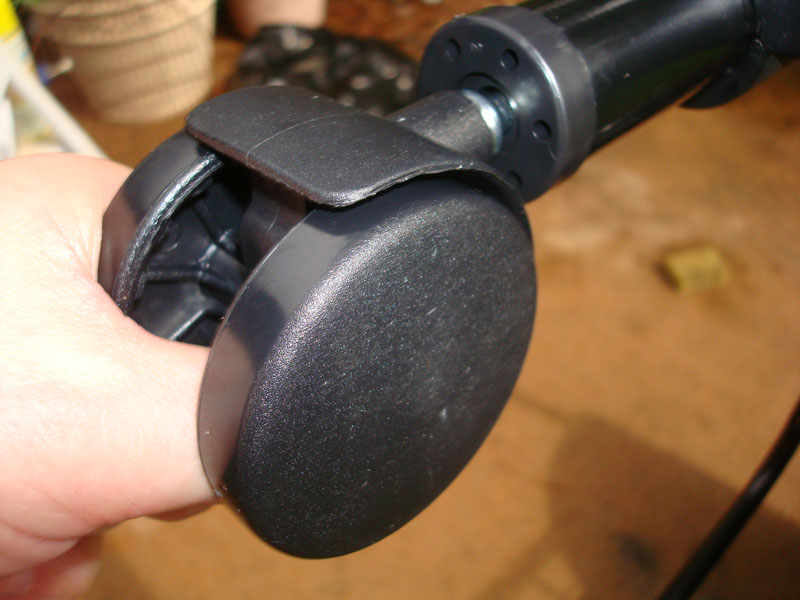

The replacement caster clicks in with little effort.

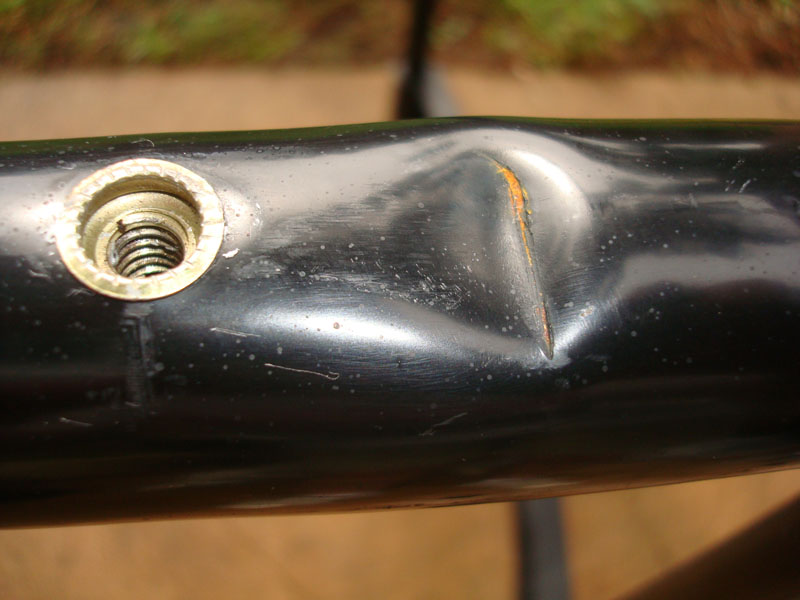

The next thing to address is the bent front frame. It appears that something heavy hit the lid and table.

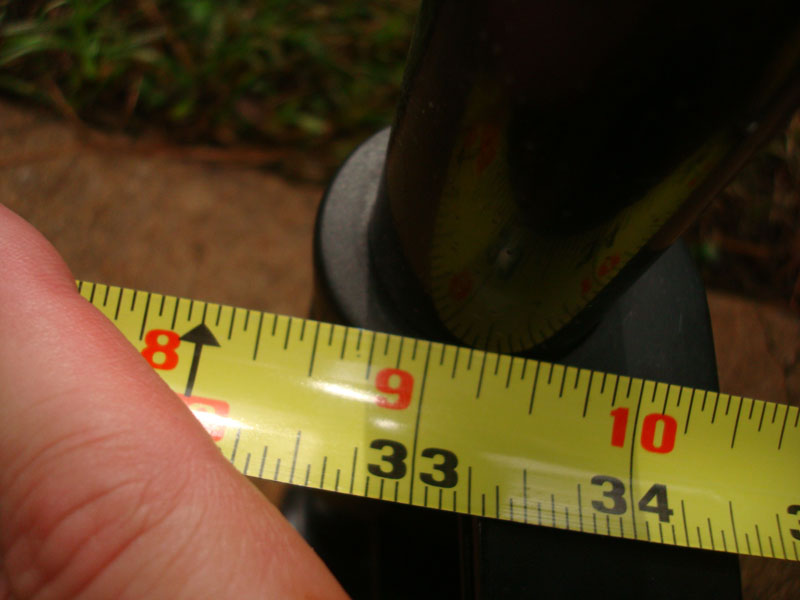

I measured the rear frame and bent the front to match. Adjustments were easy because the frame is easily bent.

FlashJim is offline   Reply With Quote


Thanks from:--->
Unread 07-22-2012, 02:06 PM   #5
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

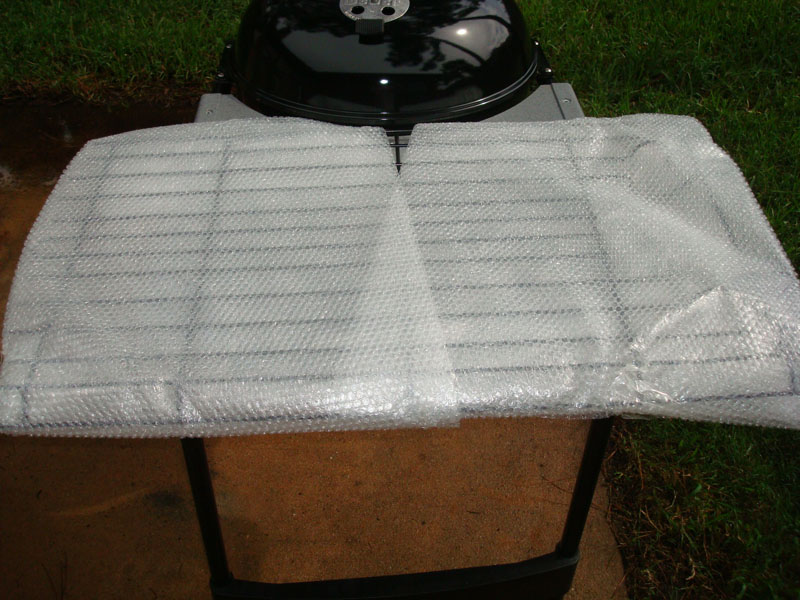

The replacement bottom rack arrived bubble wrapped and is painted black for this year Performer.


To install the rack, the side panel is removed.

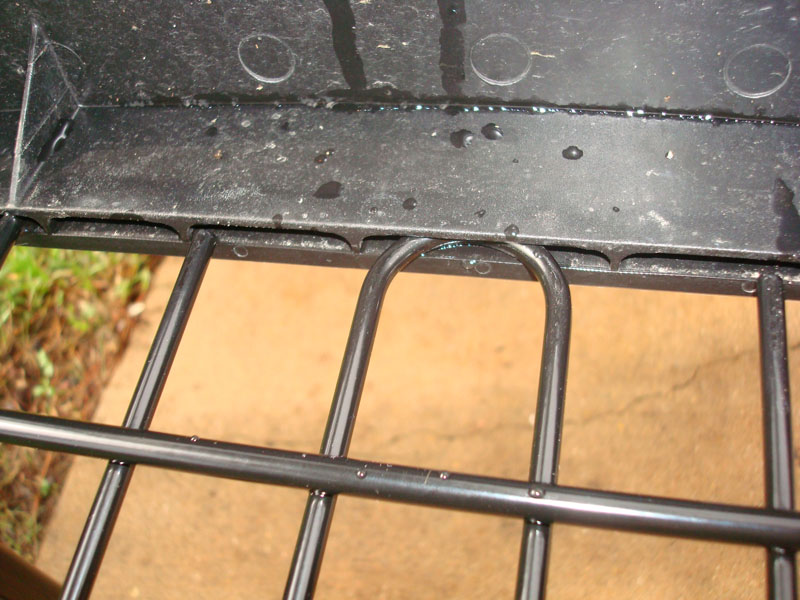

One end of the rack is slipped into the side panel and pushed in as far as it can go. The remaining side panel is reinstalled after the rack is slipped into it.

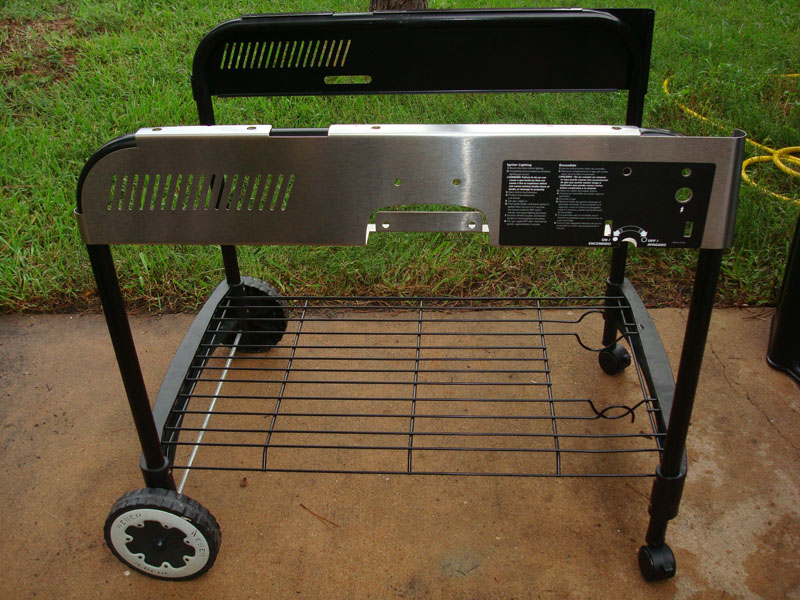

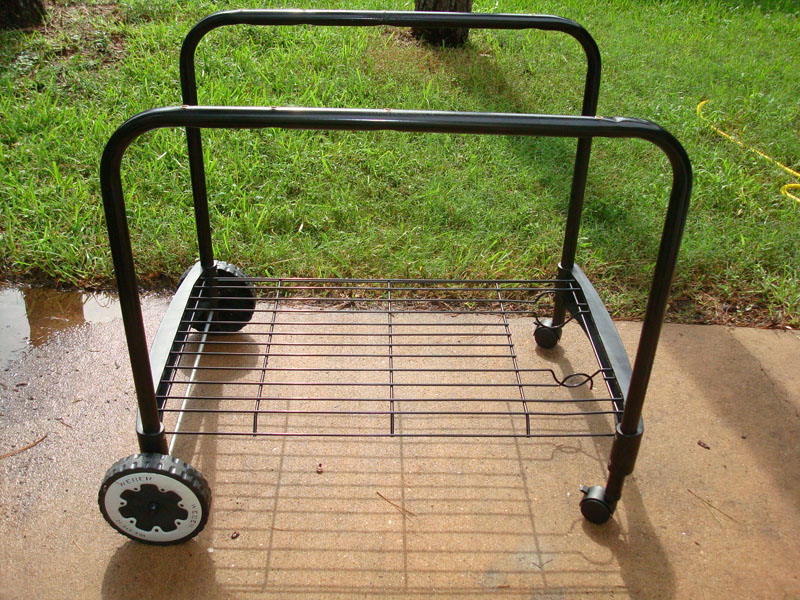

The frame is straight and the rack and casters are installed.


Slide the front and rear panels down onto the frame rails to reinstall.


With the panels in place, the bowl can be bolted to the frame.

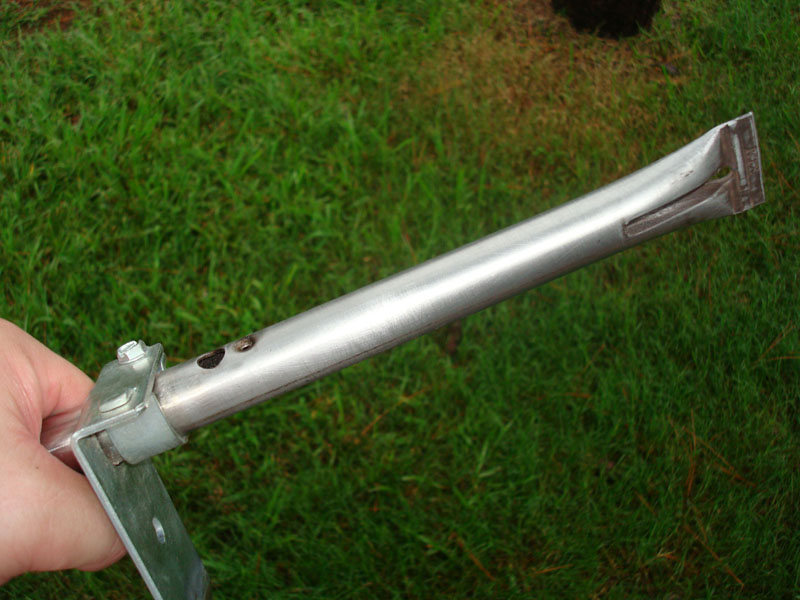

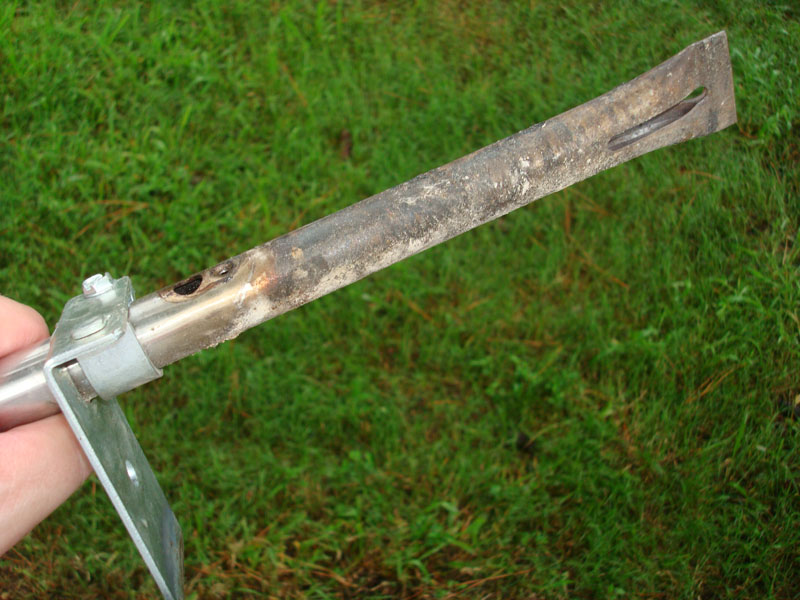

The burner was cleaned up in less than a minute with nothing but sandpaper.

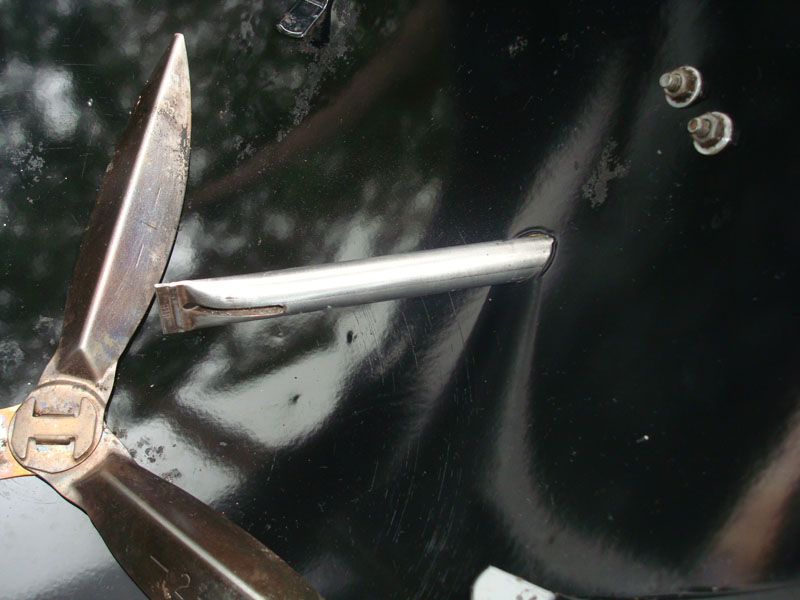

The igniter is screwed into the burner and the assembly is reinstalled and bolted to the bowl.

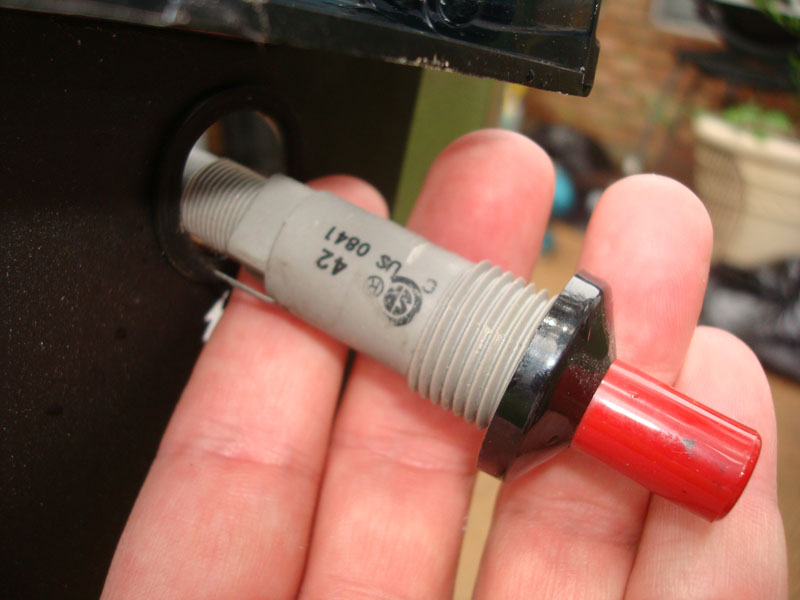

The regulator and igniter button are reinstalled and the wires are reconnected. The connectors are unique and there is only one way to plug everything in.


The tool holder, gas assist door, charcoal bin and table are reinstalled. The grill is almost done!
FlashJim is offline   Reply With Quote


Thanks from: --->
Unread 07-22-2012, 02:08 PM   #6
mwmac
Full Fledged Farker

Join Date: 10-13-08
Location: boise, id
Downloads: 0
Uploads: 0
Default

Very cool. Looking forward to seeing your finished Performer on its first cook!
__________________
18.5 WSM;DigiQ;Red SSP;Black Performer;EZ Que;Craycort;MiniWSM;Cajun Bandit;Ribolator;Red Tpen.
mwmac is offline   Reply With Quote


Unread 07-22-2012, 02:08 PM   #7
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

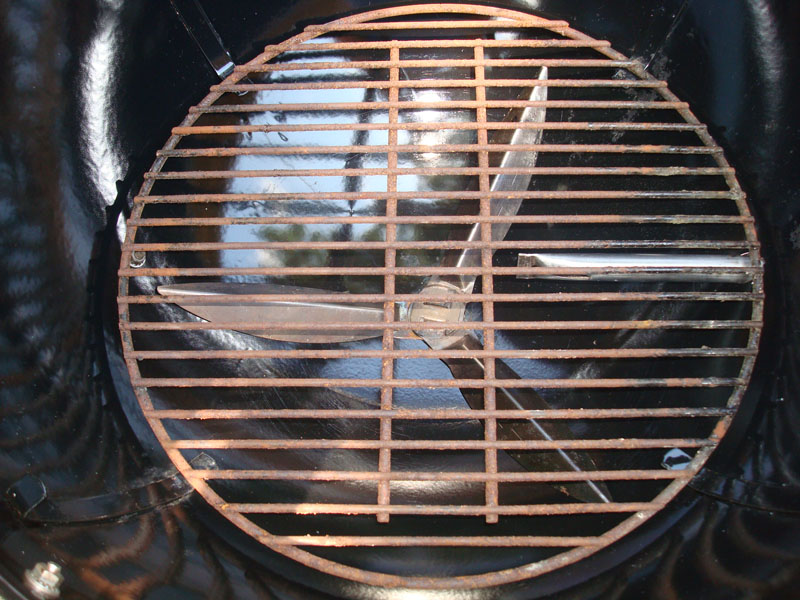

I chose to keep the original charcoal grate. It was rock solid.


The original grate was in bad shape so I opted to buy new. I felt this was a good time to try out one of the cast iron grates on the market. The cheapest cast iron grate for the 22.5"/18.5" Weber Kettle is the replacement unit from Char-Broil. This is a two piece unit and I bought it from Academy, Part #: 7315453, SKU #: 0021633896

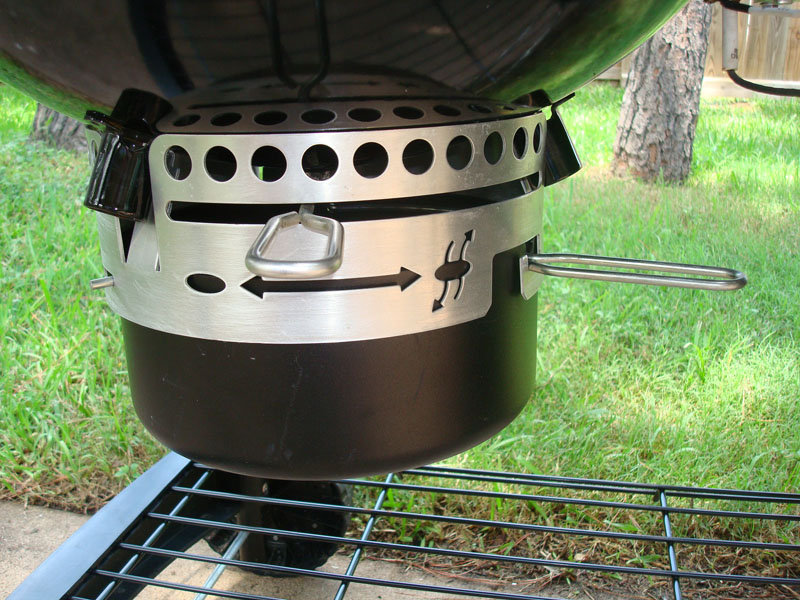

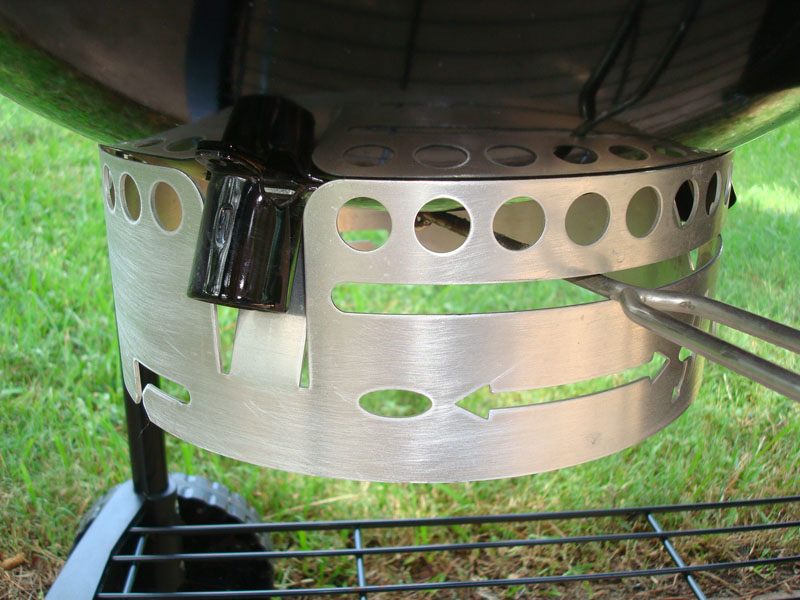

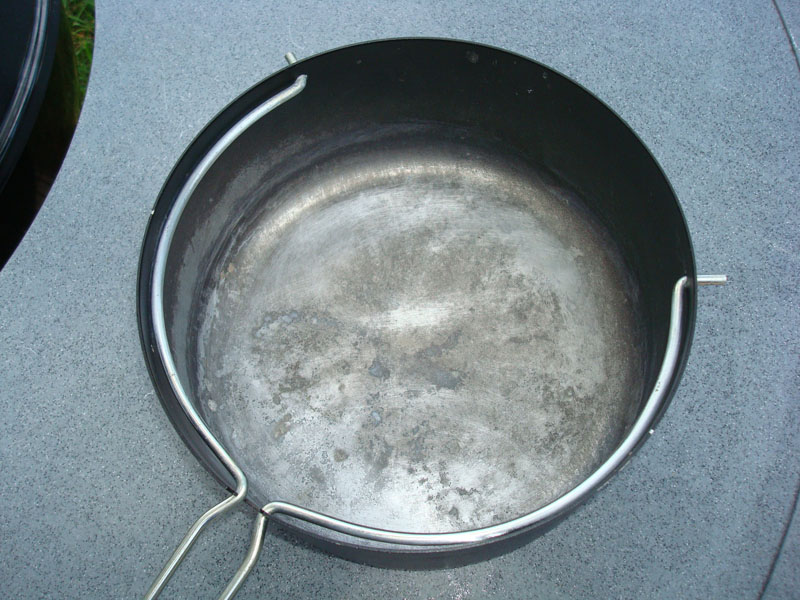

The last remaining parts to reinstall is the ash catcher assembly.

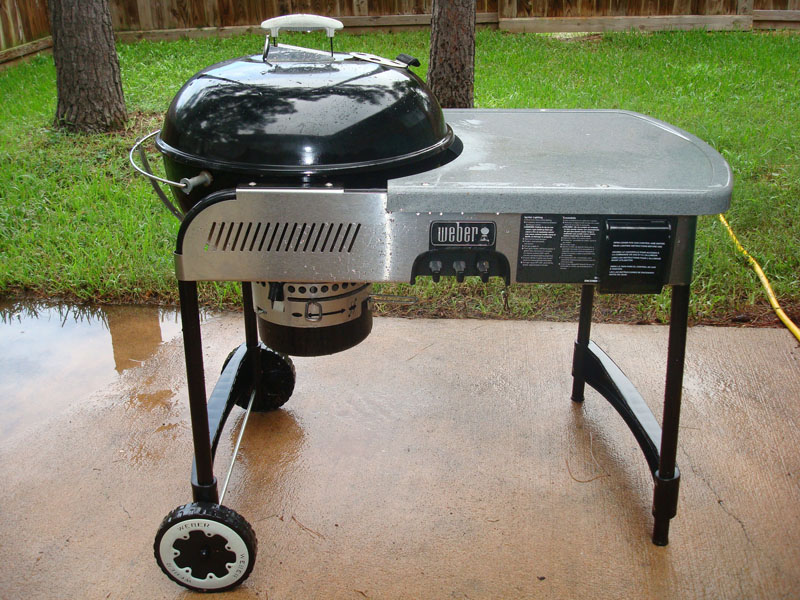

The grill is complete! Beginning to end the rebuild/cleanup only took about two hours.

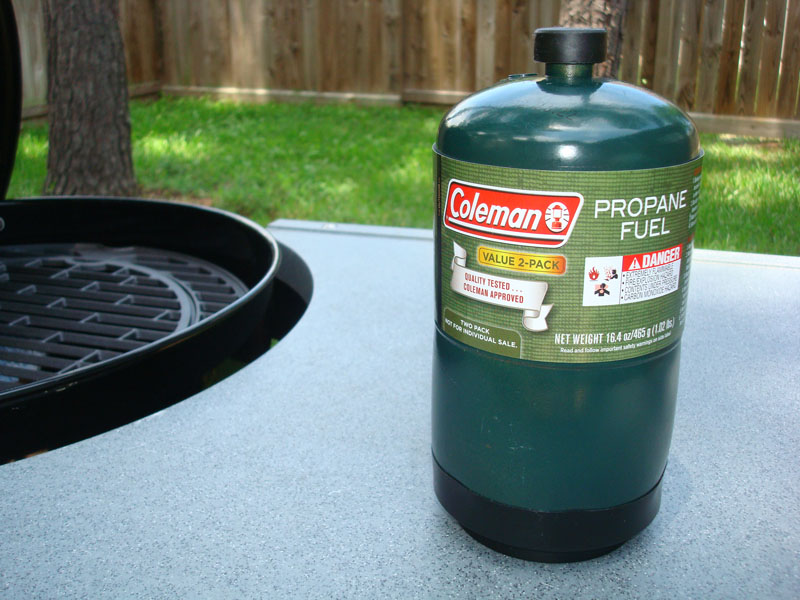

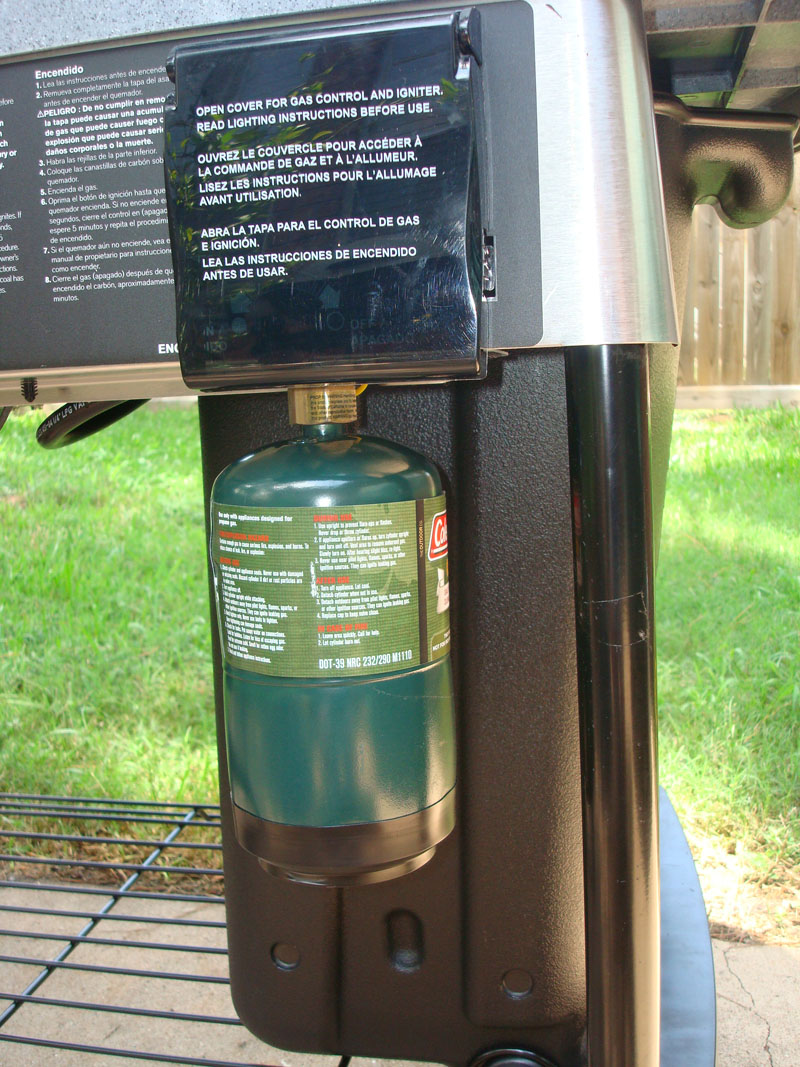

I found a spare Coleman propane cylinder and screwed it in place. The grill fired right up with the first attempt.

FlashJim is offline   Reply With Quote


Thanks from: --->
Unread 07-22-2012, 02:11 PM   #8
Bebe
On the road to being a farker


Join Date: 04-12-12
Location: Brooklyn
Downloads: 0
Uploads: 0
Default

... and i've thought i'm the only nut (according to my wife)!

excellent job!!!
Bebe is offline   Reply With Quote


Unread 07-22-2012, 02:15 PM   #9
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

Quote:
Originally Posted by Bebe View Post
... and i've thought i'm the only nut (according to my wife)!

excellent job!!!
Thanks!

Yeah, my wife knows to step aside when I pull out the tool box and camera.
FlashJim is offline   Reply With Quote


Unread 07-22-2012, 02:21 PM   #10
charrederhead
is One Chatty Farker

Join Date: 06-29-12
Location: Thomaston, CT
Downloads: 0
Uploads: 0
Default

Well done!

You have motivated (shamed) me to finish cleaning up mine.
__________________
1/4" Cimarron offset & Webers galore. REAL men drink ALE.
charrederhead is offline   Reply With Quote


Unread 07-22-2012, 02:27 PM   #11
bbqchicken
is One Chatty Farker

Join Date: 07-23-11
Location: Pomona, Ca
Downloads: 1
Uploads: 0
Default

great work! now get her dirty
__________________
UDS, Smokey Joe
bbqchicken is offline   Reply With Quote


Unread 07-22-2012, 02:27 PM   #12
jaronimo
Full Fledged Farker

Join Date: 11-30-08
Location: Northwest NJ
Downloads: 0
Uploads: 0
Default

looks good!

I want details about that cast iron kettle grate. I have been kicking around getting one. let me know how it works for you.
__________________
[FONT=Tahoma][SIZE=3][SIZE=2]

[SIZE=3][SIZE=2]Wood fired pizza oven,Copper Weber Gold, Green Weber Performer, Black Weber Silver, Green logo'd 18 inch Weber Gold, and a UDS of course.

[/SIZE]
[/SIZE][/SIZE] [/SIZE][/FONT]
[SIZE=3][URL]http://cookinginmyyard.com/[/URL][/SIZE]
jaronimo is offline   Reply With Quote


Unread 07-22-2012, 02:36 PM   #13
FlashJim
On the road to being a farker

FlashJim's Avatar

Join Date: 07-08-12
Location: Houston, TX
Downloads: 0
Uploads: 0
Default

Quote:
Originally Posted by jaronimo View Post
looks good!

I want details about that cast iron kettle grate. I have been kicking around getting one. let me know how it works for you.
Let me get a few more uses out of it and I might start another thread for it. I've used it twice and I love it. My friend just bought the Gourmet system and just judging by the pics he sent me, you can't go wrong with that option.

With my grate, adding coals after the center grate in place is a pain. I'll figure it out. I haven't needed to yet, but I like the option.
FlashJim is offline   Reply With Quote


Unread 07-22-2012, 03:01 PM   #14
Fishawn
is one Smokin' Farker

Fishawn's Avatar

Join Date: 08-09-10
Location: Olympia, WA
Downloads: 0
Uploads: 0
Default

Great post. I have the exact same Performer (not as clean though ha ha)
__________________
22 & 2-18 WSM's-3 Weber Kettles-Smokey Joe-Silver C -Weber Q-CookShack Smokette
Fishawn is offline   Reply With Quote


Unread 07-22-2012, 03:25 PM   #15
caseydog
somebody shut me the fark up.

Join Date: 07-08-10
Location: Texas
Downloads: 1
Uploads: 0
Default

What was the final cost when you were done?

CD
