Default My New UDS for 09

Alll:

I didn't see the Original UDS thread so I find it appropriate to re-post
about my new UDS within this thread.

Smoke on!

Hello all!

This is my first post here and I am delighted to part of a humble community!

I came across this site while searching for a drum smoker design. Well I was so intrigued with the UDS that I went ahead a made my own , since I have access to several empty used non-toxic drums.

It took me 2 days I am very proud of my UDS!
I am posting some pics of my version hopefully y'all will like.

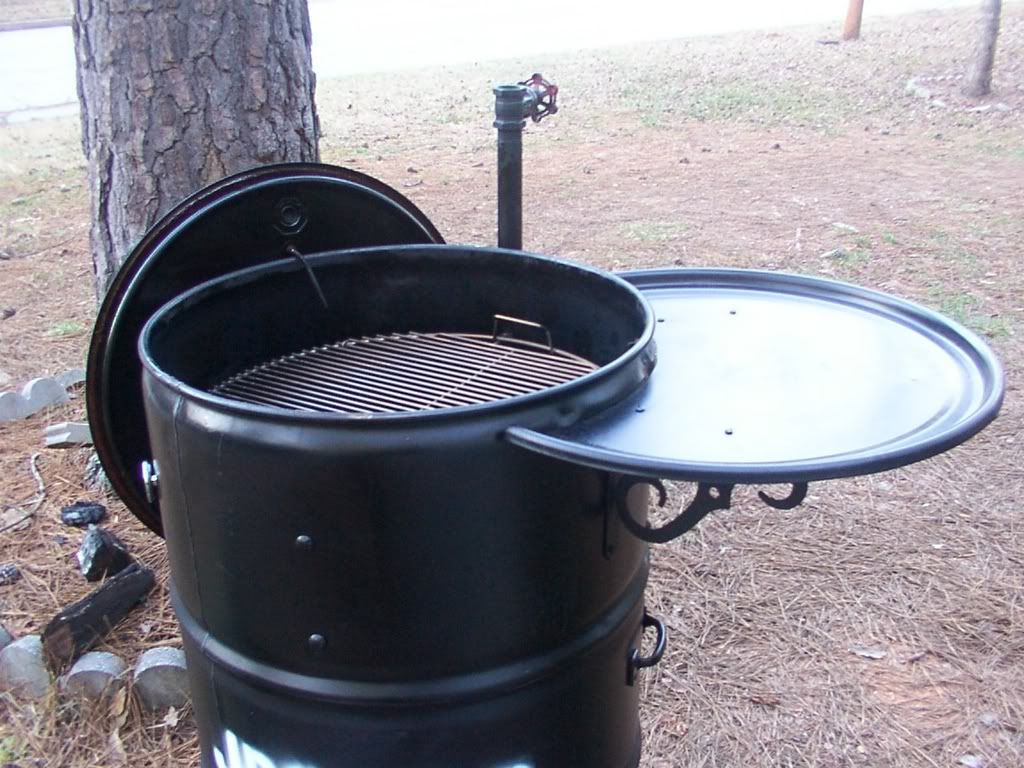

My version has a side shelf made from a drum lid and some decorative
shelf brackets.





I also have a 14.5 X 14.5 X 7 charcoal box. This was made
used a steel framed box fixture for stage props (found several on the side of the road 3 years ago) The expanded metal is 3/4"-#9. I purchased a 48" x 48" sheet from Metals Supermarket (most major cities have these stores) for $32, enough to make two boxes. My charcoal box has a couple of built-in features; 1. The top portion can be used as handles for lifting the box in and out of the drum. 2. The box itself can be used as a campsite cooker I have a separate piece of expanded metal that fits perfectly in the recessed grooves around the top of the charcoal box.







The air intakes are 1" and I am using a 1" valve for regulating the air intake. After doing a trial run I found that this smoker maintained 240 degrees for 12 hours using two open inlets.


The exhaust is a 2" muffler tip I purchased from Advanced Auto parts for $4.99 The exhaust is held in place using a 2" conduit fitting which screws inside the 2" threaded bung hole on the lid.

I lucked up and came across a metal dolly which fitted my drum perfectly.

Oh yeah I will post lots of BBQ pron!
I am going to be able to watch the Atlanta Falcons win the super bowl,
while using my new the UDS!
