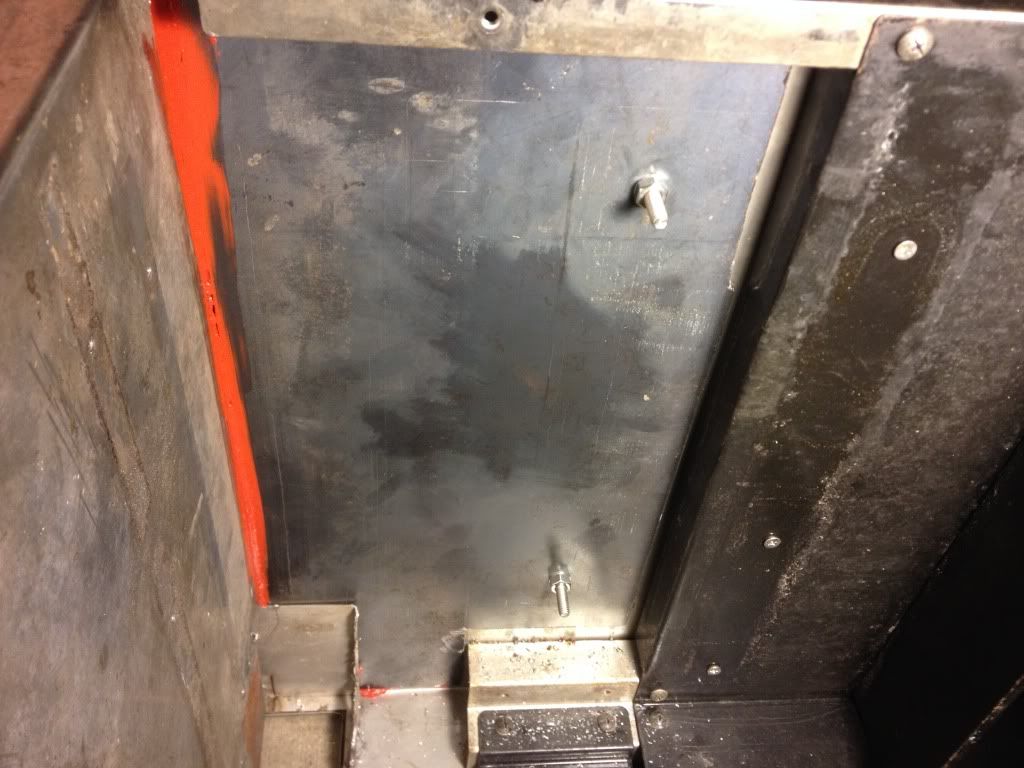

The bottom half of the firebox is not Double Walled and is Louvered for propane air intake and as you can see in the pics there is a 1" channel in back corners and 1" lip on front so the FireBox insert will have a 1" air gap around 2 sides and the back. So I cut some plate and painted the Louver side with High Temp Silver Paint and installed with Stainless bolts and High Temp RTV to seal off the Louvers.
I tried to test fit the FB insert but it is a tight enough fit it would not go past the screw you see in the top right corner of bottom pic- which is a Good thing- I'll just have to take a few screws out and squeeze it in there!. the insert is gonna be permanent anyways and I'll have a removable Charcoal Burn Basket.
