Default P.I.D is a general math for automation

Quote:
Originally Posted by BluesDaddy View Post
I appreciate the suggestions, but would like to understand more about what these variables control and what are the options for setting them. Is there a maximum setting for each? Based on what you've posted, P seems to determine the margin of difference from the set pit temp the fan kicks on or off. What do I and D control?

I've really only used this twice for a cook, and was more satisfied this second time.

Thanks!
Different applications may need different modes, Say PID,PI, PD, or P only.
I have extensive test on rice cooker when doing sous vide on controller FOX, 80-260VAC, 15A.
PID math. is same in FoX and Wolf Tiger Lion and DOG

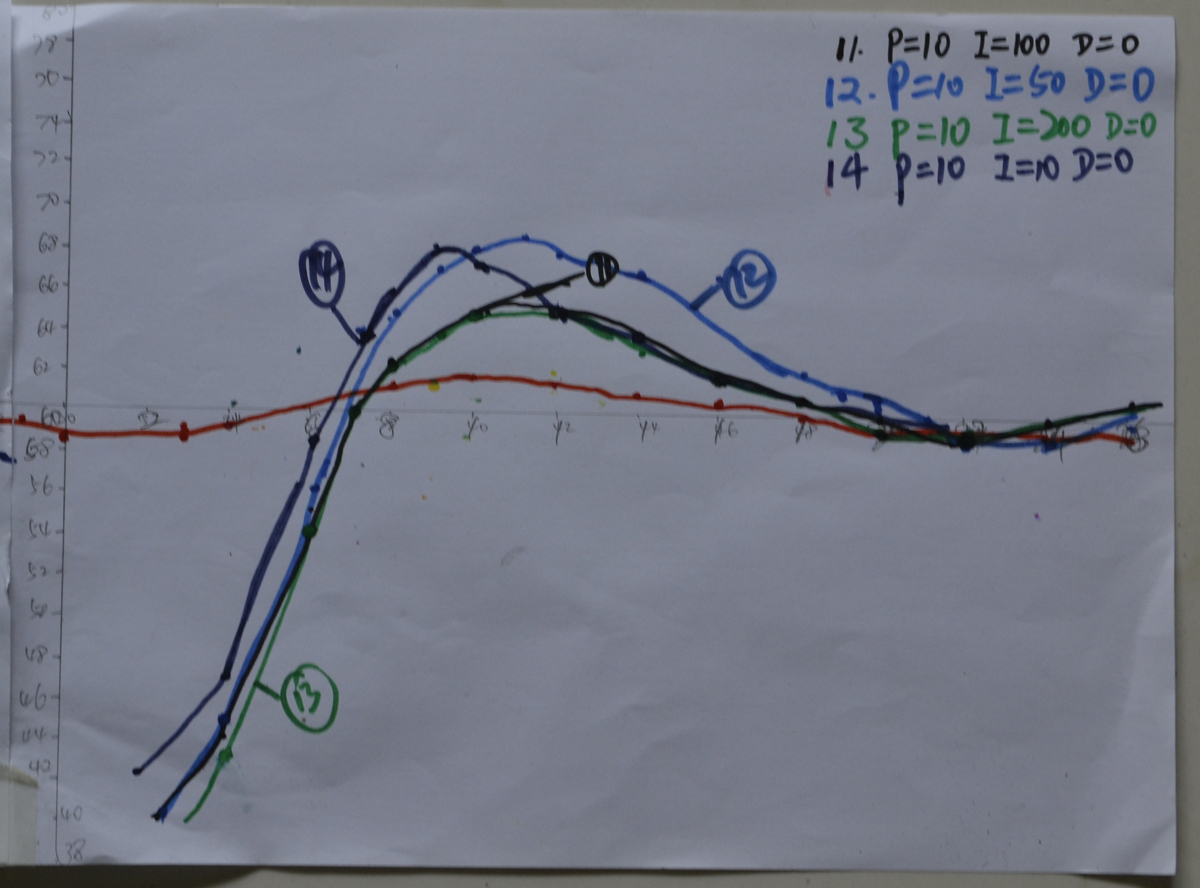

Followings are result on rice cooker
