Here is the internal pics.

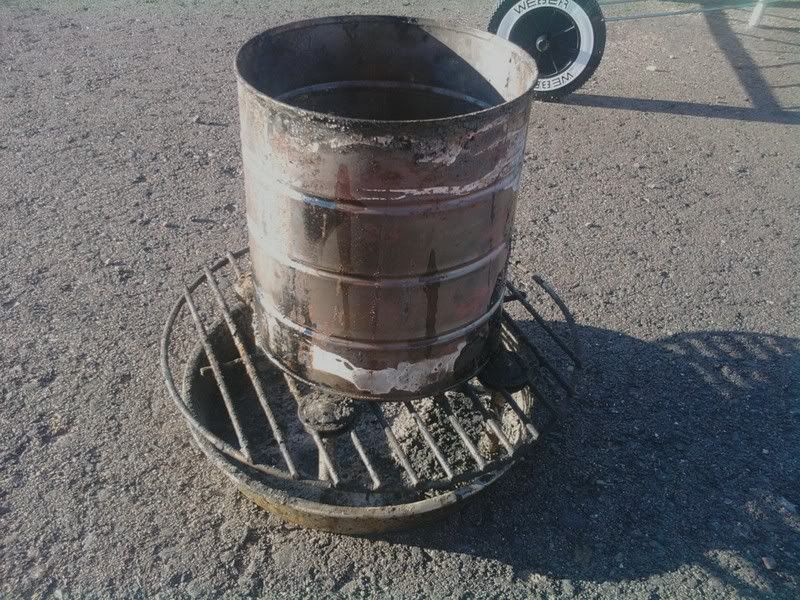

The fire basket, made from a small Weber charcoal grate, 4 carriage bolts, a 9 inch round cake pan, and a coffee can.

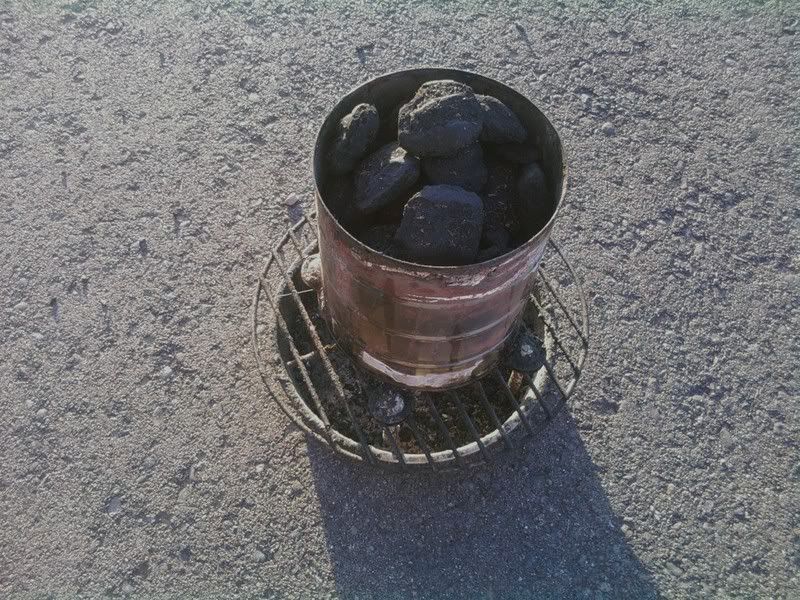

Only holds about as much charcoal as a chimney.

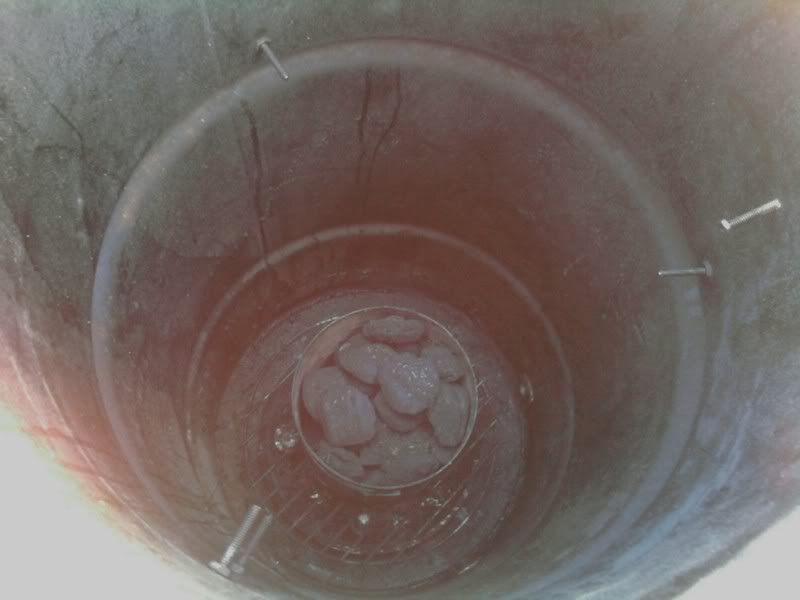

The whole works then goes into the drum and is ready to have a couple of hot coals dropped on top.

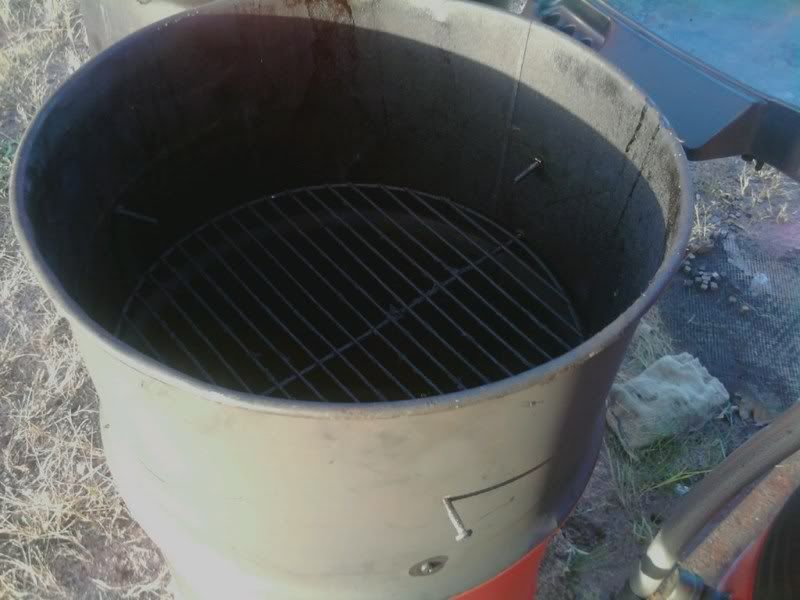

Bolts are used for grate supports with the upper level having one that slides out to allow the bottom grate in.

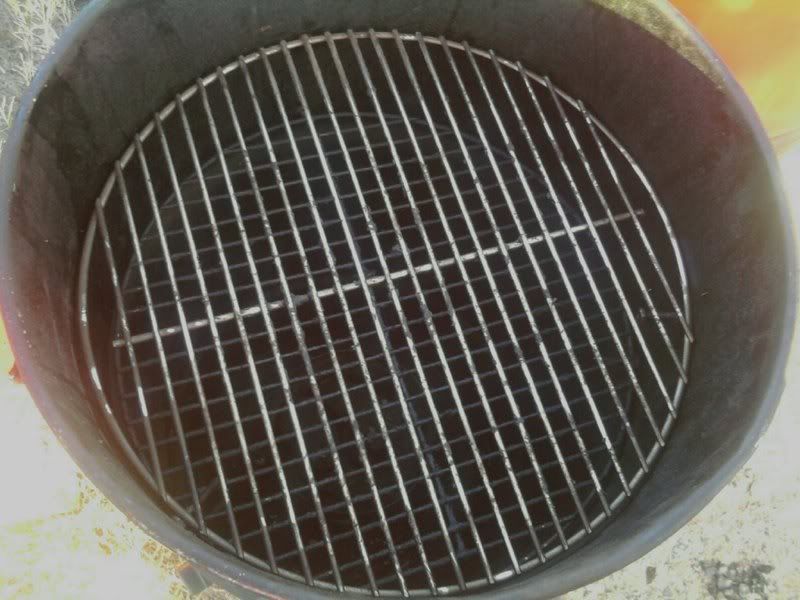

Push the bolt back in and on goes the top grate.

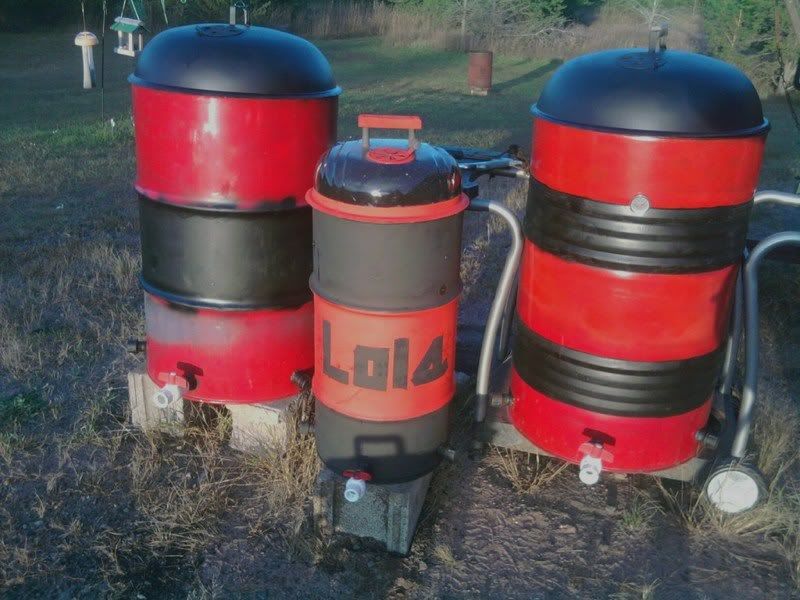

Here it is in it's new spot, right between the twins.

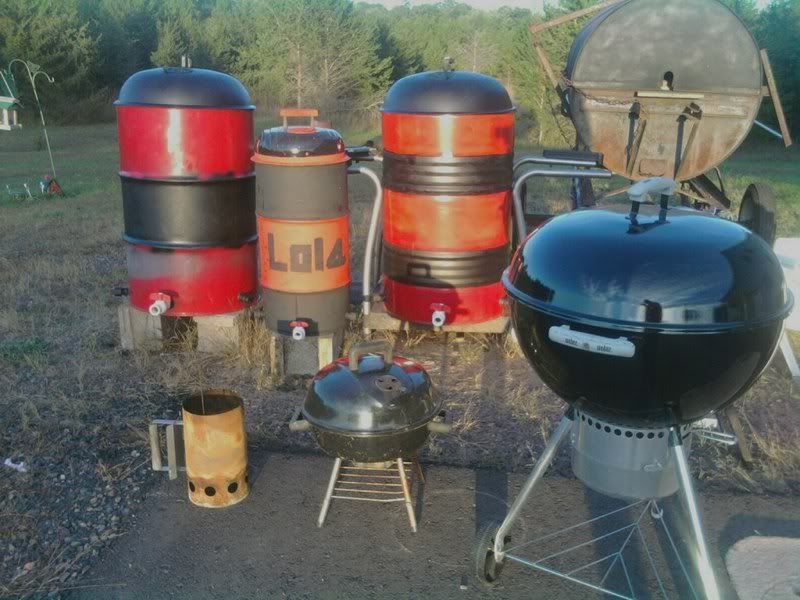

Finally, the new "family" picture.
